Tec 6300 Pneumatic Spray Hot Melt Gun

Power Adhesives Tec 6300 Spray Applicator

Designed for high-volume adhesive application, the Power Adhesives Tec 6300 is an air-assisted hot melt spray gun built to handle large surface bonding tasks with speed and precision. It dispenses 1-3/4" (43 mm) hot melt adhesive and delivers an exceptional melt rate of up to 10 lb (4.2 kg) per hour, helping maximize throughput in demanding production environments.

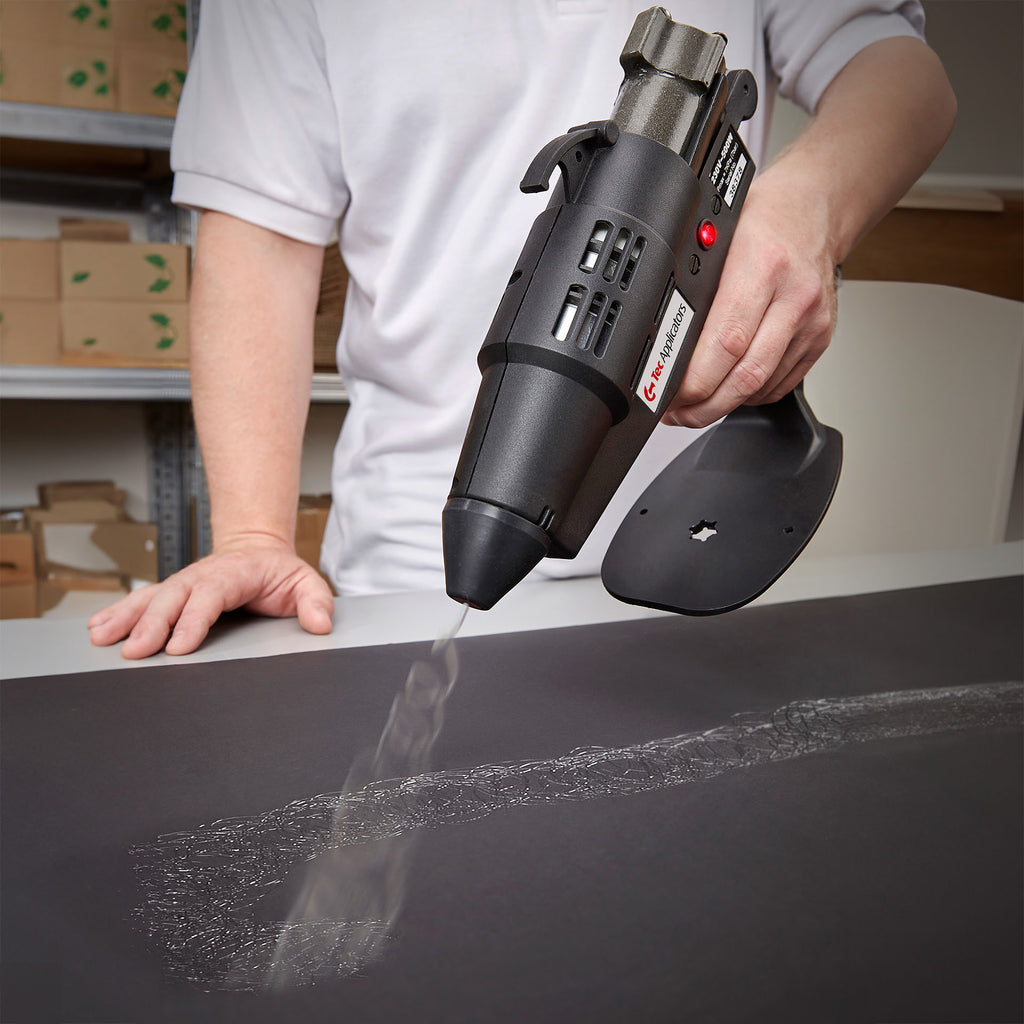

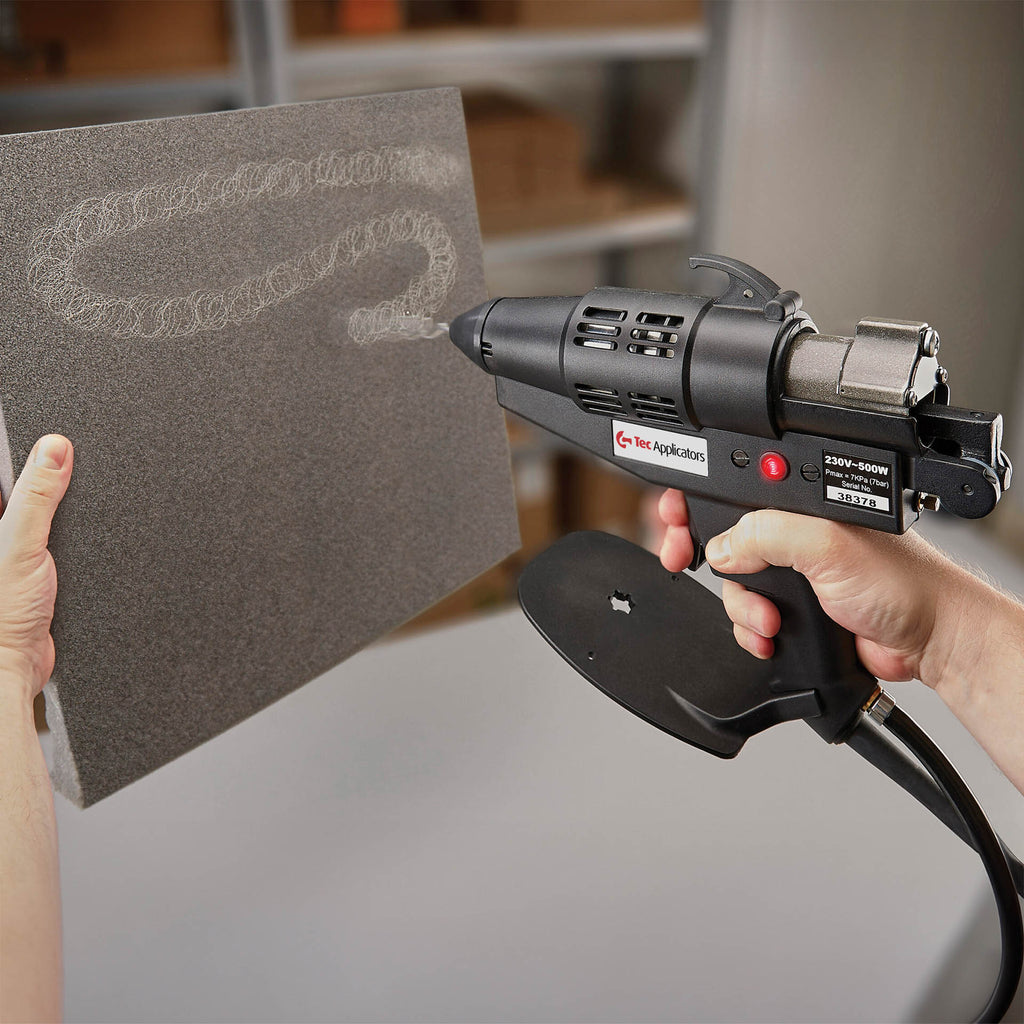

Rather than relying on conventional spray methods, the Tec 6300 uses compressed air to produce a controlled swirl spray pattern, ensuring even adhesive coverage without the use of solvents or VOCs. Features such as pneumatic feed assistance and an easy-click trigger reduce operator effort while maintaining consistent adhesive output, improving overall efficiency and comfort during extended use.

For applications that demand higher spray volume, Tec 7300 pneumatic glue gun offers enhanced heating strength, rapid reload capability, and an 11.25 lb/hr adhesive output.

Top Features of the Tec 6300 Spray Gun

• Air-Assisted Spray Delivery: Compressed air creates a controlled swirl spray pattern, providing uniform adhesive coverage across wide surface areas.
• Operator- and Environment-Safe Formula: Solvent-free and VOC-free operation eliminates hazardous fumes while supporting safer workspaces and reduced environmental impact.
• Designed for Continuous Output: Capable of dispensing up to 10 lbs (4.2 kg) of adhesive per hour to support high-throughput production demands.

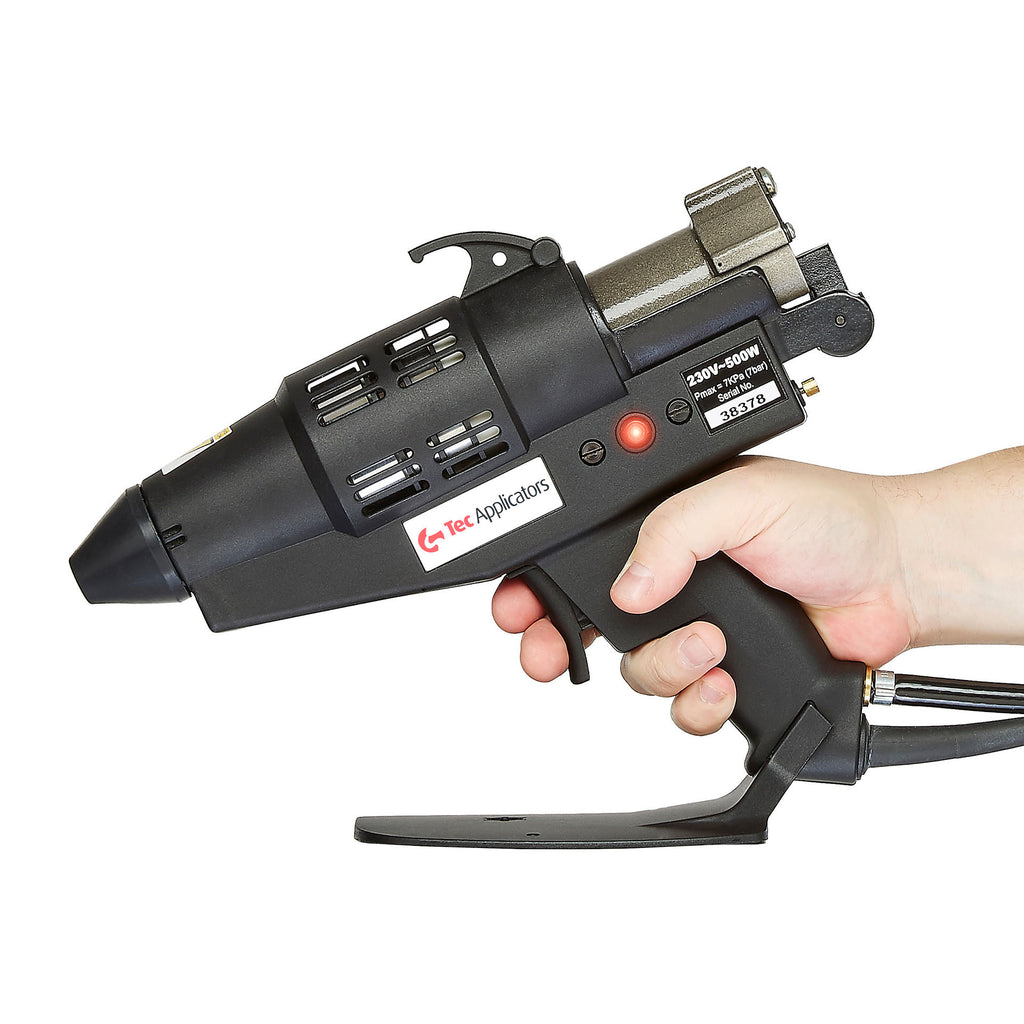

• Reduced User Effort: Pneumatic feed assistance paired with a light-action trigger minimizes hand strain and helps improve overall productivity.
• Lower-Temperature Application: Operates at reduced adhesive temperatures to safely bond heat-sensitive materials without surface damage.
• Flexible Resting & Positioning: Features a built-in stand for stability when not in use and a removable base to improve access in confined work areas.
• Compliance & Warranty Coverage: Meets UKCA, CE, and UL safety requirements and includes a 12-month manufacturer warranty.

Product Specifications

• Model: Tec 6300-43

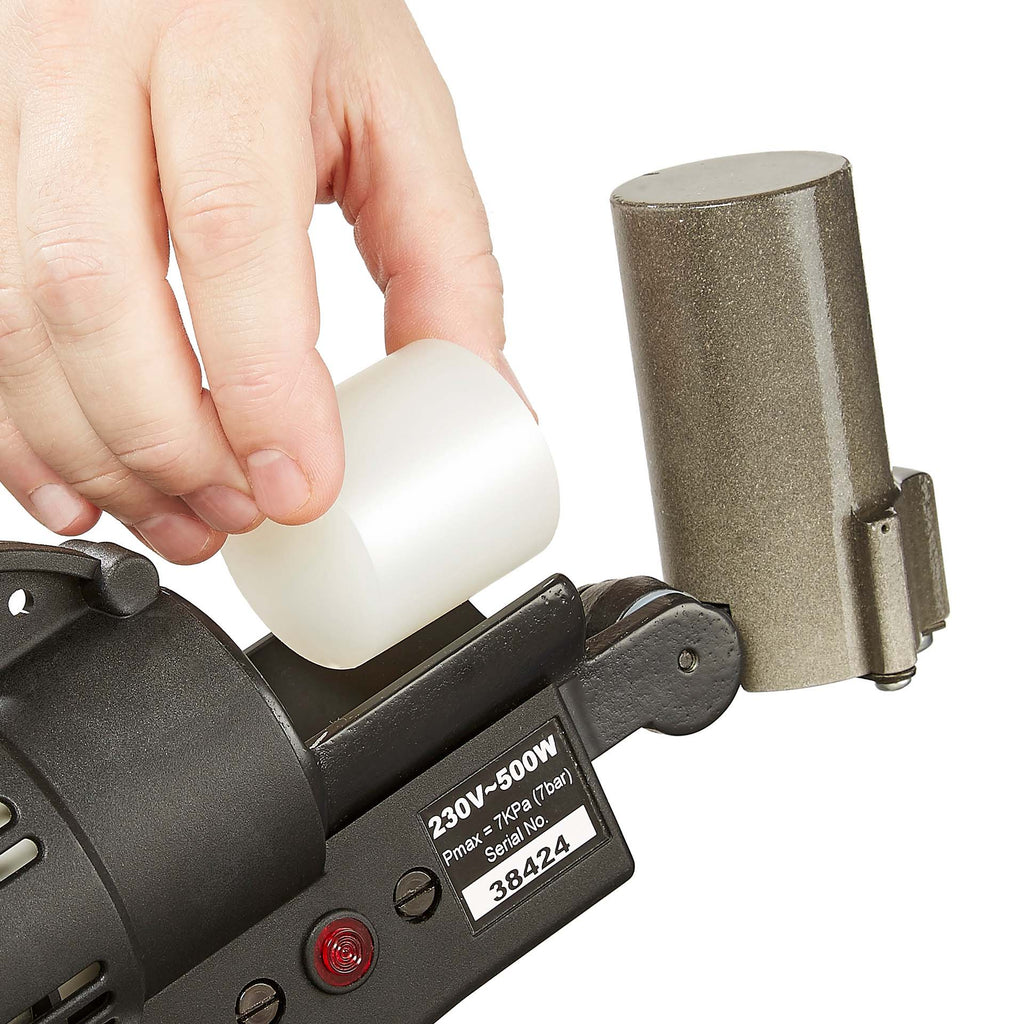

• Glue Size: 1-3/4" (43mm) Slugs
• Voltage 120V (U.S. Plug)
• Wattage: 500W
• Melt Rate: 10 lbs (4.2kg)/hr
• Heater: Cartridge
• Feed System: Pneumatic
• Temperature: 356°F (180°C)
• Output Method: Spray
• Power Source: Power Cord
• Plug Type: U.S. Style
• Weight: 3 lbs (1.4kg)

Applications & Industries

• Large Surface Bonding
• Foam & Fabric Applications
• Furniture & Upholstery
• Packaging & Carton Sealing
• Automotive & Aerospace Assembly

Recommended Compatible Adhesives

• Tec 420
• Tec 425
• Tec 430
• Tec 232
• Tec Casttec 42 (Precast Hot Melt)

Additional Spray Nozzles

• PA6045 Narrow angle spray nozzle 1.2mm (0.050”) orifice (Red)
• PA6046 Narrow angle spray nozzle 1.5mm (0.060”) orifice (Red)
• PA6056 Narrow angle spray nozzle 2.0mm (0.080”) orifice (Red)
• PA6060 Medium angle spray nozzle 2.0mm (0.080”) orifice (Yellow)
• PA6061 Medium angle spray nozzle 1.5mm (0.060”) orifice (Yellow)
• PA6064 Wide angle spray nozzle 2.0mm (0.080”) orifice (Blue)
