Bostik PA 5420 Steam Resistant Fabric & Apparel Copolyamide Hot Melt

Bostik PA 5420 Copolyamide Adhesive for Steam-Resistant Clothing, Apparel, and Fabric Lamination

Bostik PA 5420 is a thermoplastic copolyamide adhesive designed for clothing, apparel, and fabric lamination where high steam and wash resistance is essential. Offered in powder and pellet form, it withstands laundering up to 194°F (90°C) and delivers excellent dry cleaning durability. Its thermal stability and controlled flow make it especially effective for structured garments, steam-pressable interlinings, and heat-resistant laminates.

Performance Benefits of Bostik PA 5420 Fabric Lamination Glue

• Steam Resistant Bonding: Maintains adhesive performance in steam-forming environments—ideal for structured garments and interlinings.
• High Wash Durability: Withstands laundering up to 194°F (90°C) while maintaining reliable bond strength on clothing fabrics.
• Excellent Dry Cleaning Resistance: Performs consistently in commercial dry cleaning cycles.
• Thermally Stable Processing: Fuses cleanly between 266–284°F (130–140°C) with standard pressure and dwell time.
• Versatile Coating Compatibility: Applies smoothly using paste dot, powder dot, or scatter coating equipment.
• Available in Two Formats: Supplied in both powder and pellet form to suit a variety of lamination systems.

Specifications

• Model: PA 5420
• Chemistry: Thermoplastic Copolyamide Adhesive

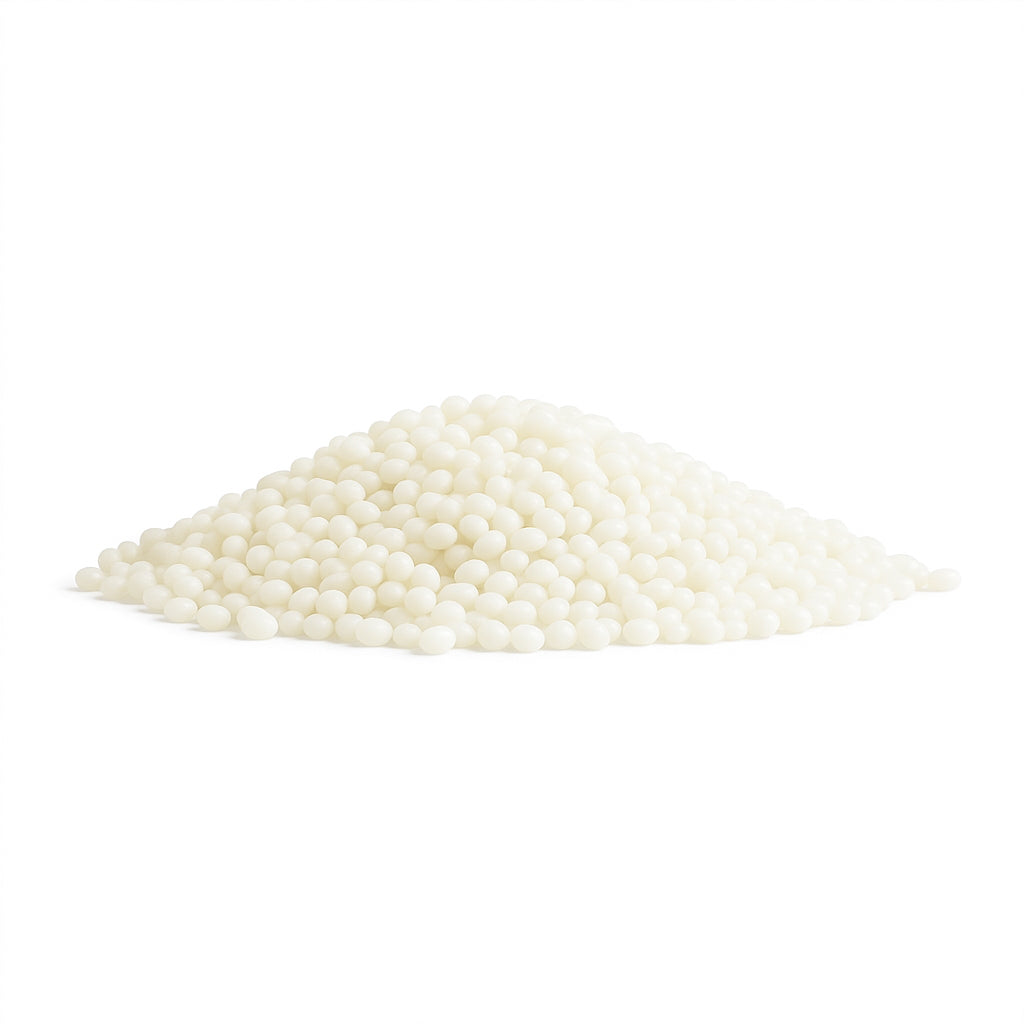

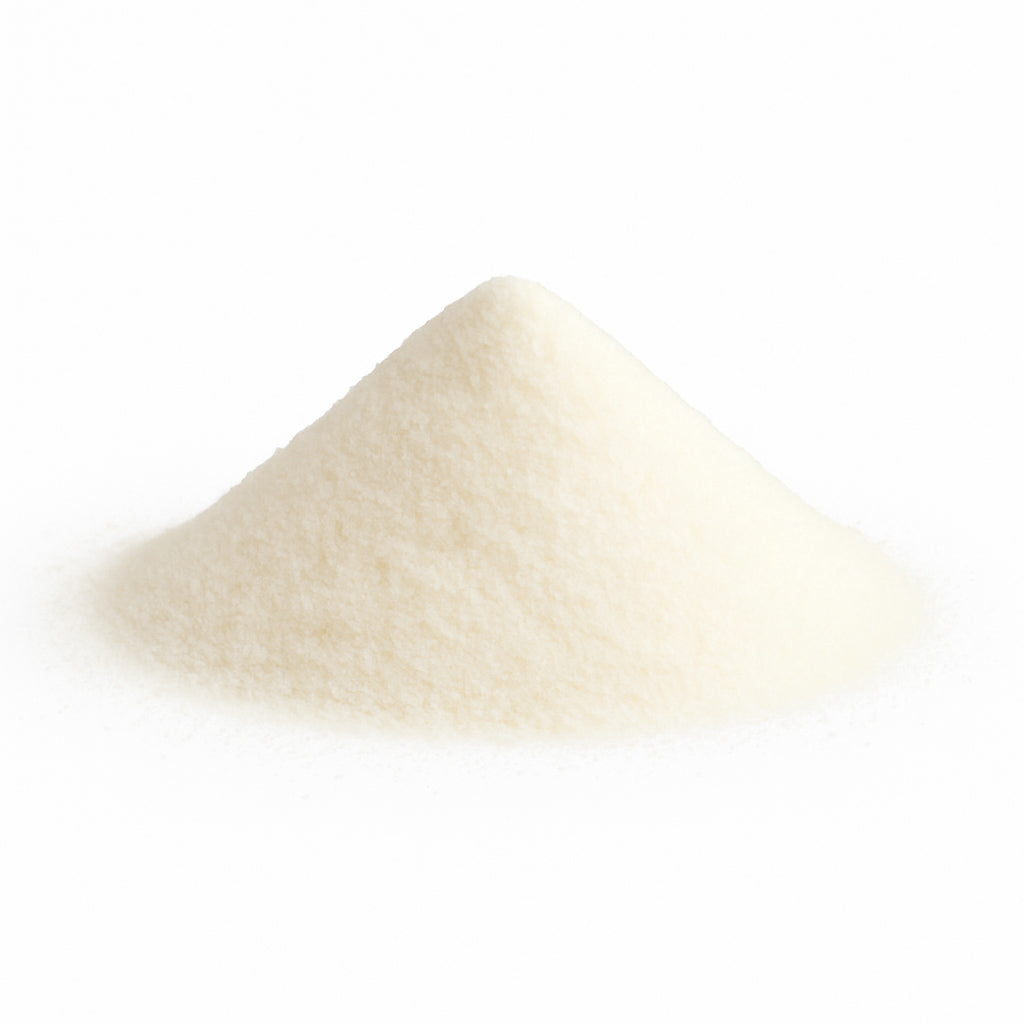

• Appearance: Off-White Powder or Pellets
• Compatible Substrates: Natural fabrics, synthetic fabrics, polyester films
• Common Applications: Apparel lamination, clothing production, steam-resistant interlinings, heat-pressable garment components, structured garments
• Melting Point (DSC): 253–271°F (123–133°C)
• Melting Range (Kofler): Onset: 212°F (100°C), Offset: 248°F (120°C)
• Melt Flow Rate: 26 g/10 min @ 320°F (160°C), 100 g/10 min @ 374°F (190°C)
• Viscosity: 400,000 cps @ 320°F (160°C)
• Hardness: Shore D64
• Density: 1.09 g/cm³
• Fusing Temperature: 266–284°F (130–140°C)
• Fusing Pressure: 3–5 N/cm²
• Fusing Time: 10–15 seconds
• Washing Resistance: Up to 194°F (90°C)
• Dry Cleaning Resistance: Excellent
• Steam Resistance: Good
• Storage and Handling: Store in a dry environment below 86°F (30°C)
• Shelf Life: Up to 2 years in original sealed packaging
• Available Particle Sizes:
• Paste Dot: 0–80 µm
• Powder Dot: 80–200 µm
• Scatter Coating: 100–500 µm
