Bostik PA 5210 General Purpose Fabric & Apparel Copolyamide Hot Melt

Bostik PA 5210 Hot Melt Adhesive for Clothing, Apparel, and Fabric Lamination

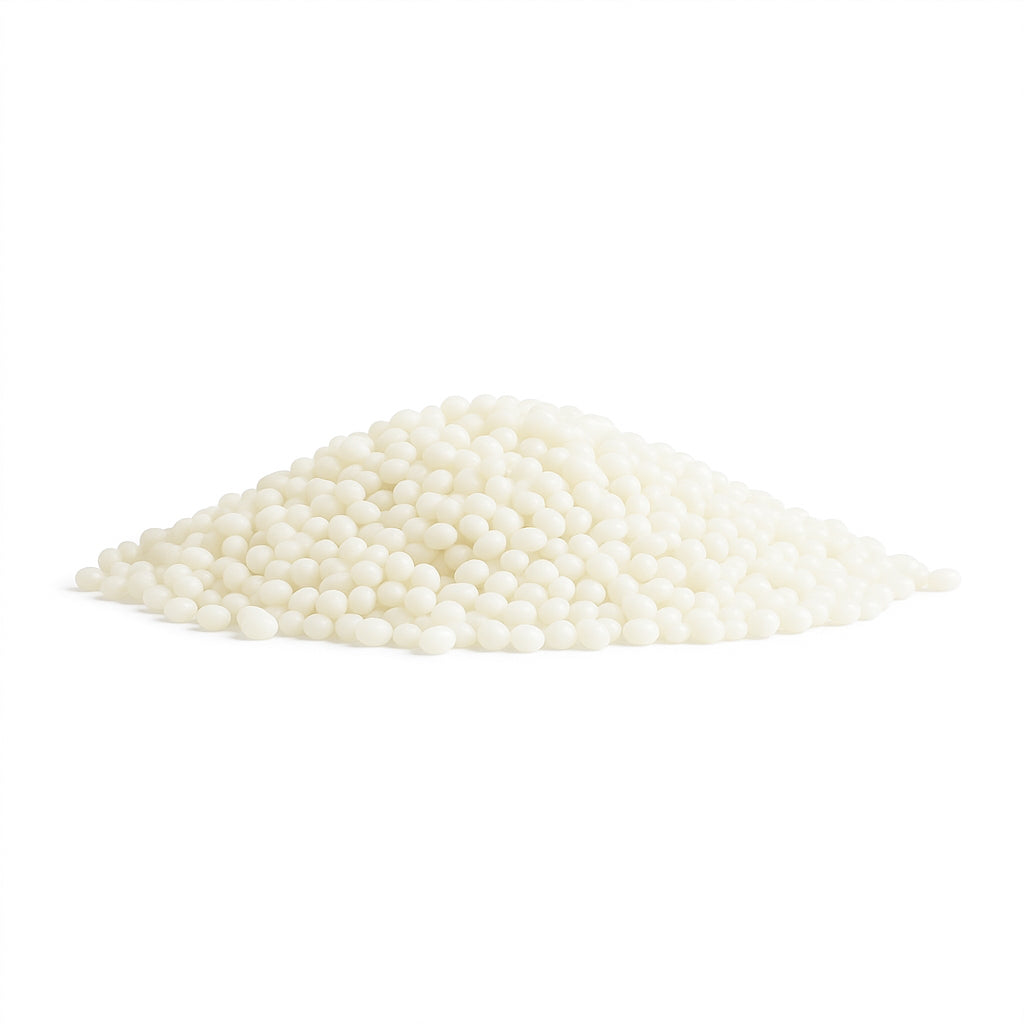

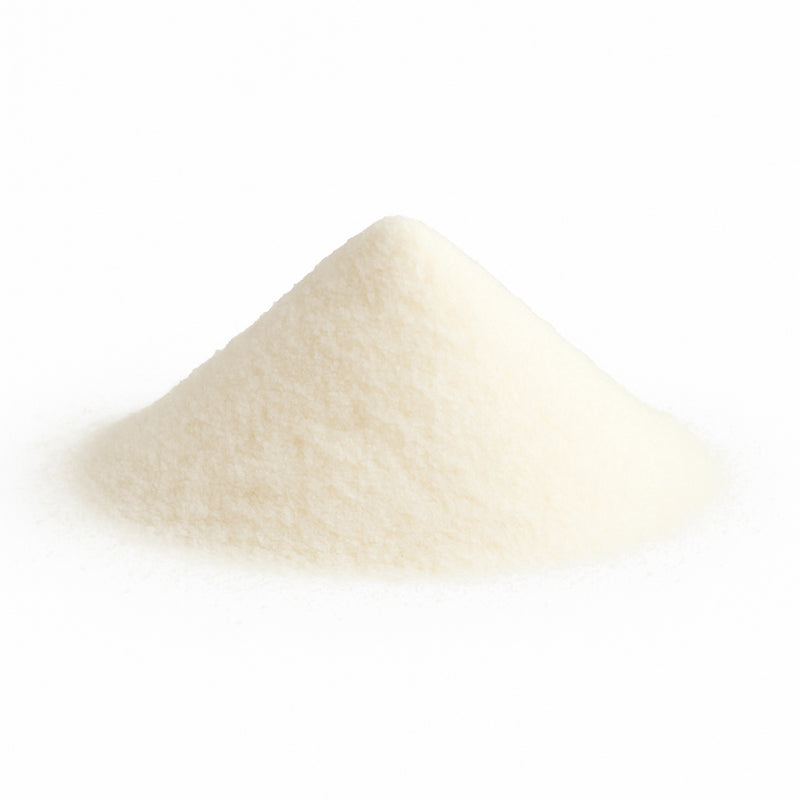

Bostik PA 5210 is a thermoplastic copolyamide hot melt adhesive available in both powder and pellet form. It is engineered for durable lamination of clothing and apparel fabrics, offering strong resistance to washing, dry cleaning, and steam forming. With a wide particle size range and reliable fusing performance, PA 5210 is well-suited for paste dot, powder dot, and scatter coating applications in textile bonding.

Benefits of Bostik PA 5210 Hot Melt Glue

• Durable Fabric Lamination: Designed for long-lasting bonds in clothing fabrics, even after repeated washing.
• Excellent Washing & Dry Cleaning Resistance: Maintains bond integrity through laundering at 140°F (60°C) and dry cleaning cycles.
• Steam Resistant Performance: Withstands steam forming without compromising adhesive strength.
• Flexible Fusing Conditions: Activates between 248–302°F (120–150°C) with short dwell times for fast processing.
• Fast Fixture Strength: Achieves initial bond strength quickly upon cooling, enabling clean handling and continuous production.
• Versatile Application Formats: Supports paste dot, powder dot, and scatter coating processes.
• Available in Multiple Forms: Supplied in both powder and pellet format for a wide range of production setups.

Specifications

• Model: PA 5210
• Chemistry: Thermoplastic Copolyamide Adhesive
• Appearance: Off-White Powder or Pellets
• Compatible Substrates: Natural fabrics, synthetic fabrics, polyester films
• Common Applications: Apparel lamination, textile bonding, interlinings, heat fusing of fabrics, structured garments, clothing production
• Melting Point (DSC): 230–248°F (110–120°C)
• Melting Range (Kofler): Onset: 212°F (100°C), Offset: 257°F (125°C)
• Melt Flow Rate (2.16 kg): 15 g/10 min @ 320°F (160°C)
• Hardness: Shore D63
• Density: 1.09 g/cm³
• Fusing Temperature: 248–302°F (120–150°C)
• Fusing Pressure: 2–4 N/cm²
• Fusing Time: 10–15 seconds
• Washing Resistance: Up to 140°F (60°C)
• Dry Cleaning Resistance: Excellent
• Steam Resistance: Good
• Storage and Handling: Store in a dry environment below 86°F (30°C)
• Shelf Life: Up to 2 years in original sealed packaging
• Available Particle Sizes:
• Paste Dot: 0–80 µm
• Powder Dot: 80–200 µm
• Scatter Coating: 100–500 µm
