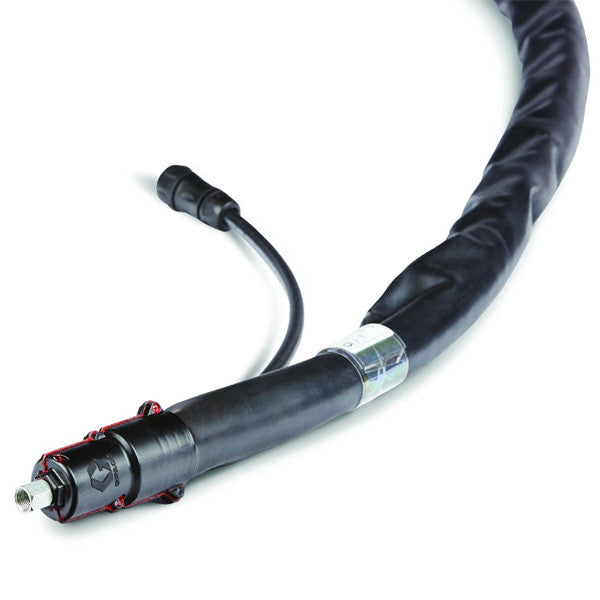

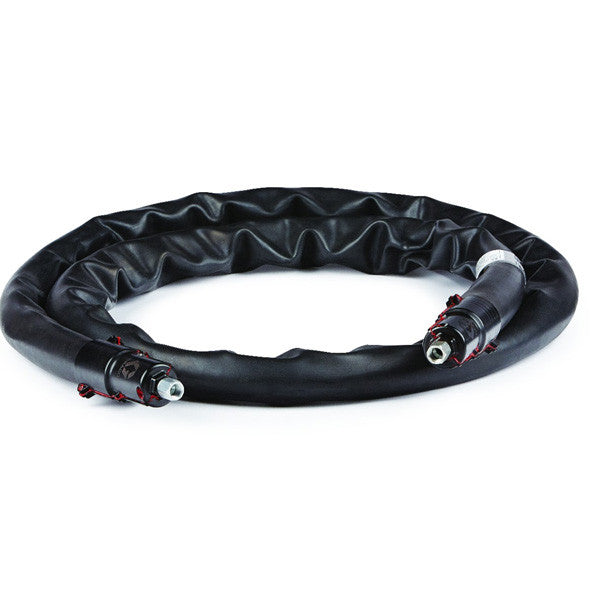

Graco InvisiPac Heated Water Wash Hose - All Lengths

Graco InvisiPac Heated Waterwash Hose Overview

Graco InvisiPac Water Wash Heated Hoses are specifically designed for wash-down environments, providing exceptional durability and water resistance. Built for Graco InvisiPac systems, this hose features a rugged black rubber scuff guard and is IPx6 rated, ensuring no water seepage even in heavy water conditions. With a maximum operating temperature of 400°F (204°C) and a fluid pressure rating of 1,500 psi (103 bar), it offers reliable, high-performance dispensing for demanding industrial applications.

Features and Benefits

• Designed for Wash-Down Environments: Built to withstand high-moisture areas, preventing water ingress.

• IPx6 Rated for Water Resistance: Ensures no seepage, even in heavy water conditions.

• Durable Black Rubber Scuff Guard: Protects the hose from wear and abrasion for long-lasting performance.

• Optimized for Graco InvisiPac Systems: Engineered for seamless integration with InvisiPac hot melt equipment.

• Wide Temperature & Pressure Range: Operates at up to 400°F (204°C) and 1,500 psi (103 bar) for consistent material flow.

• Multiple Length Options: Available in 4 to 25 ft. to fit a variety of industrial applications.

Specifications

• Product Type: Water-Wash InvisiPac Heated Hose

• Core Size: No. 6 Core

• Hose Length: 4 - 25 ft.

• Hose Fluid Fittings: 0.31 ID (9/16-18 JIC(f))

• Maximum Fluid Working Pressure: 1500 psi (103 bar, 10 MPa)

• Maximum Temperature: 400°F (204°C)

• Power Requirements: 230 VAC, 50/60 Hz

• Wetted Parts: PTFE Core, SST Couplings

• Power Consumption: 60 watts per foot of hose; 25 ft. hoses use 50 watts per foot

• Minimum Bend Radius: 8 in. (203 mm)
