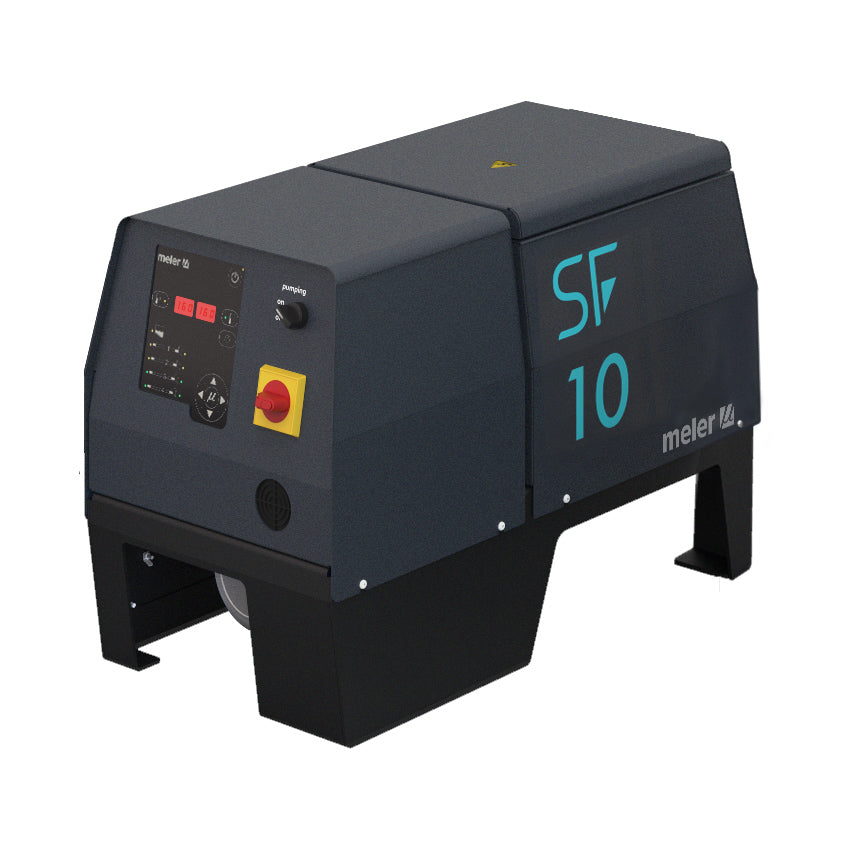

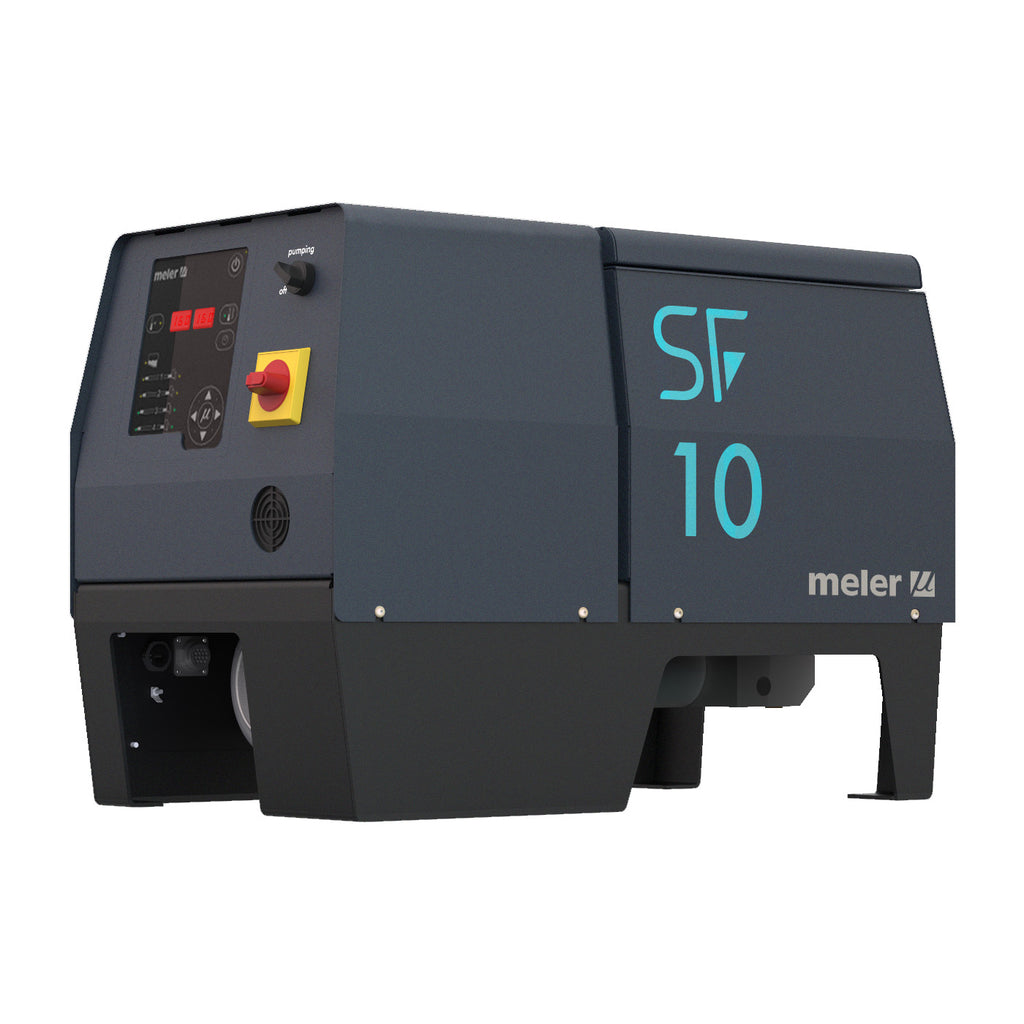

Meler SF10 Hot Melt Glue Melter, 2.6 Gallon Unit

Flexible, Plug-and-Play Hot Melt Glue Melter for Small to Mid-Volume Packaging Lines

The SF10 is a hot melt glue melter built for small to mid-volume packaging operations that require consistent adhesive delivery and flexible system integration. Featuring a 2.6 gallon tank and a melting capacity of up to 19.8 lbs/hr, it provides steady adhesive supply for carton sealing, case sealing, and automated packaging lines where uptime and process stability are critical. Its gear pump system ensures reliable adhesive flow across multiple application points, making it well-suited for both manual and semi-automated environments.

Designed as a versatile plug-and-play hot melt system, the SF10 combines performance with ease of operation. Precise temperature control helps maintain uniform adhesive viscosity, reducing charring and improving bonding consistency during extended use. With support for up to four hose outputs and configurable system options, it adapts to evolving production needs while maintaining efficient, repeatable performance in packaging applications.

Performance Features of the SF10 Flexible Hot Melt Glue Melter

• Flexible Multi-Point Application: Supports multiple hose connections, enabling efficient adhesive distribution across packaging lines.
• Balanced Performance for Production: Designed to deliver consistent adhesive supply for small to mid-volume packaging operations.
• Reliable Adhesive Delivery: Gear pump system ensures stable flow rates for consistent bonding quality across applications.
• Consistent Temperature Stability: Precision temperature control maintains uniform adhesive viscosity and reduces charring.
• Adaptable System Configuration: Configurable outputs and system options allow the unit to scale with changing production needs.
• Service-Friendly Design: Accessible internal components simplify routine maintenance and minimize production interruptions.

Specifications

• Model: SF10
• Tank Capacity: 2.6 Gallons (10 L)
• Melting Rate: 19.8 lbs/hr (9.0 kg/hr)
• Pumping Capacity: Varies by pump size and operating conditions
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives
• Pump Type: Gear pump (8 cc/rev)
• Number of Hose Outputs: Up to 4
• Number of Electrical Outputs: 4
• Temperature Range: 104 to 392°F (40 to 200°C)
• Temperature Control: RTD ±1°F (±0.5°C)
• Maximum Working Pressure: 1,160 psi (80 bar)
• Power Consumption: ~4.0 kW (approximate)
• Electrical Requirements: 400V, 3-phase, 50/60 Hz + PE
• Ambient Temperature: 32 to 104°F (0 to 40°C)
• Dimensions (L × W × H): 30.3" × 15.6" × 20.1" (770 × 395 × 510 mm) – lid closed
• Weight: 143 lbs (65 kg) – empty

Meler SF10 — Available Configurations & Options

The SF10 offers a flexible adhesive dispensing system platform that can be configured to meet the needs of small to mid-volume packaging lines. It provides a balance of performance and adaptability, allowing the system to integrate easily into a variety of production environments.

• Hose & Output Configuration: Supports up to four hose connections for multi-point adhesive application.
• Pump & Output Control: Available with multiple pump size options and optional variable speed control to optimize adhesive delivery.
• Bypass & Pressure Control: Configurable with mechanical or pneumatic bypass valves, with optional pressure control systems for enhanced performance.
• Sensor & Monitoring Options: Supports selectable sensor types and optional low-level detection to improve system visibility and operation.

Common Packaging Applications

• Case Sealing
• Carton Sealing
• Tray Forming
• Semi-Automated Packaging Lines
• Multi-Station Packaging Systems

Explore Other Meler SF Series Models

• SF4 – Compact system for low-volume applications
• SF20 – High-capacity system for continuous production environments
