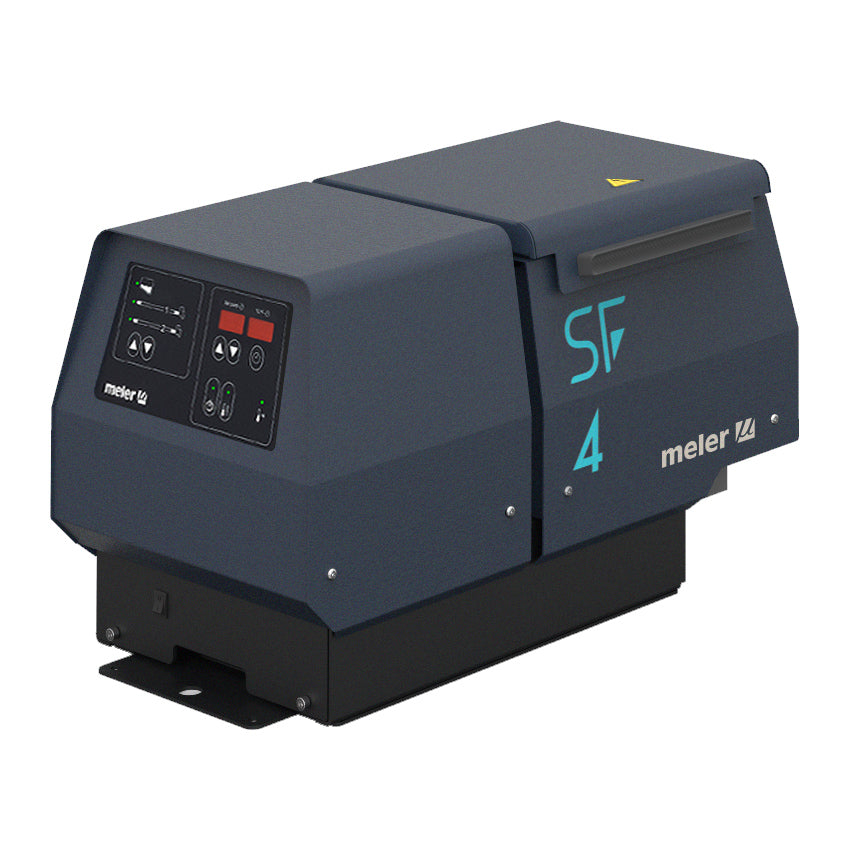

Meler SF4 Hot Melt Adhesive Melter, 1.05 Gallon Unit

Compact, Plug-and-Play Hot Melt Adhesive System for Manual and Low-Volume Packaging Applications

The SF4 is a compact hot melt adhesive melter designed for manual and low-volume packaging applications where simplicity and reliability are essential. With a 1.05 gallon tank and a melting capacity of up to 13 lbs/hr, it supports intermittent use and lower adhesive demand, making it ideal for small packaging lines, point-of-use systems, and manual operations. Its gear pump design delivers consistent adhesive flow for bead and swirl applications while maintaining stable operating conditions.

Engineered as a plug-and-play adhesive dispensing system, the SF4 prioritizes ease of use, quick setup, and simplified maintenance. The system provides consistent temperature control to help maintain adhesive viscosity and reduce material degradation over time. With support for two hose outputs and accessible internal components, it offers dependable performance for packaging processes that require flexibility without unnecessary complexity.

Key Features & Benefits of the SF4 Compact Hot Melt Adhesive Melter

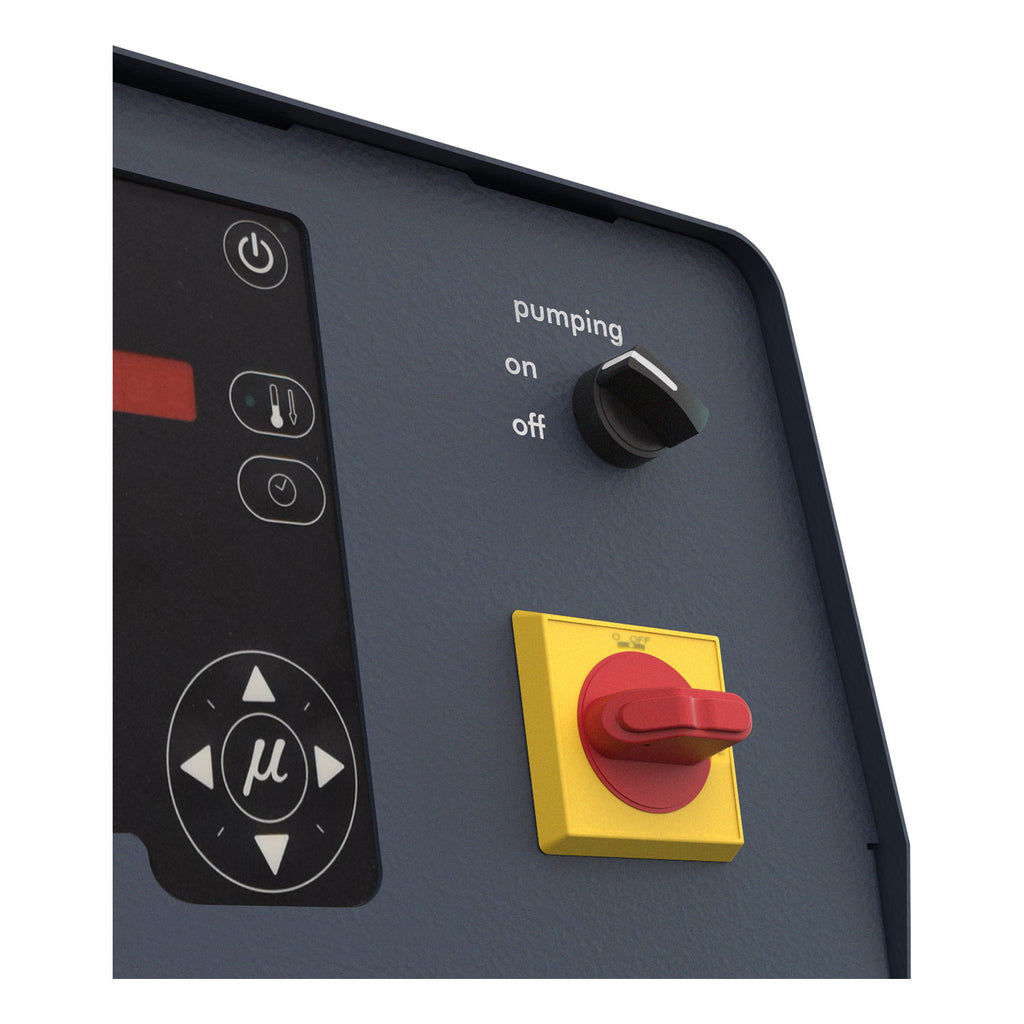

• Simple, Operator-Friendly Design: Intuitive controls and straightforward operation reduce training time and make daily use easy for manual and low-volume applications.
• Compact, Space-Saving Footprint: Designed for point-of-use systems and tight packaging environments where floor space is limited.
• Consistent Adhesive Flow: Gear pump system delivers steady, reliable output for bead and swirl applications without unnecessary complexity.

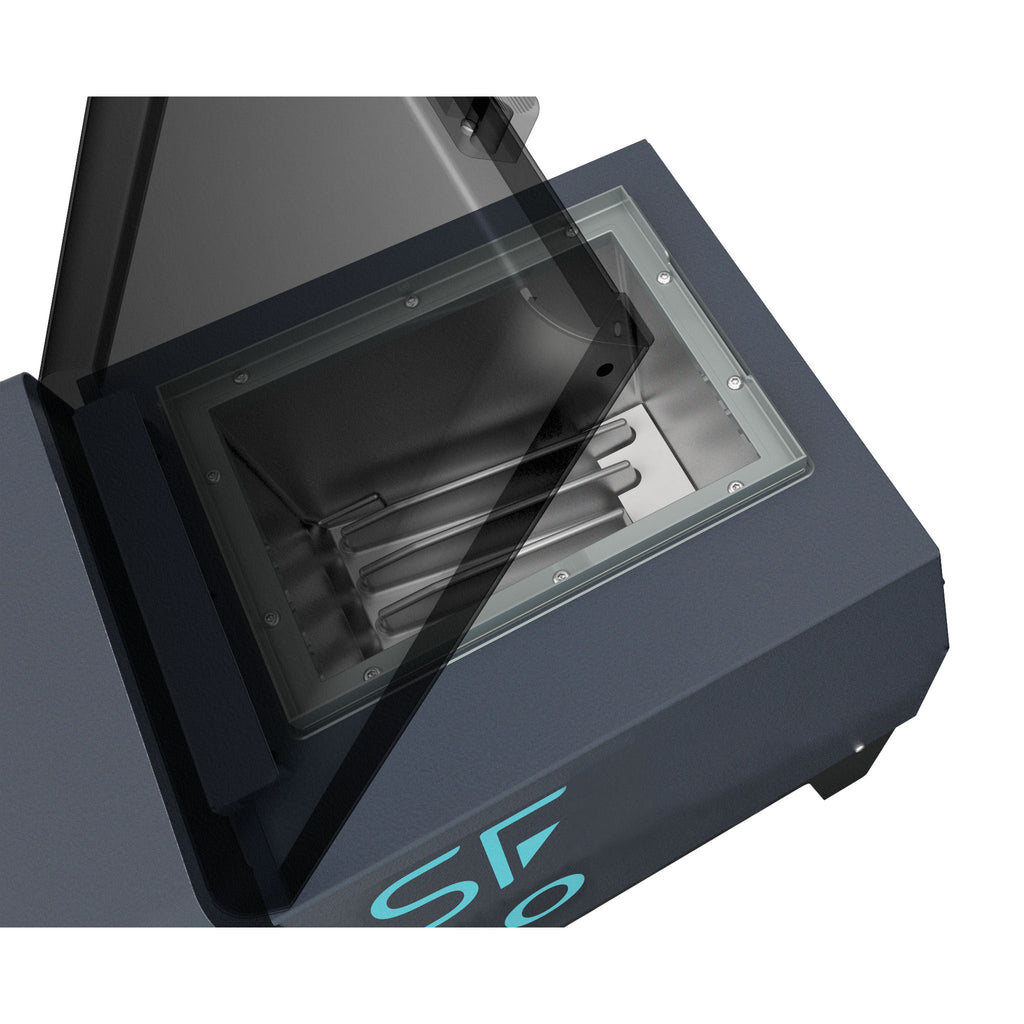

• Fast Access for Maintenance: Easily accessible tank, pump, and internal components simplify cleaning and reduce downtime.
• Plug-and-Play Integration: Minimal setup requirements allow for quick installation and immediate use in packaging processes.
• Efficient Heating Performance: Stable temperature control helps maintain adhesive viscosity and reduces material degradation during operation.

System Specifications

• Model: SF4
• Tank Capacity: 1.05 Gallons (4 L)
• Melting Rate: 13 lbs/hr (6.0 kg/hr)
• Pumping Capacity: Varies by pump size and operating conditions
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives
• Pump Type: Gear pump (2 cc/rev)
• Number of Hose Outputs: 2
• Number of Electrical Outputs: 2
• Temperature Range: 104 to 392°F (40 to 200°C)
• Temperature Control: RTD ±1°F (±0.5°C)
• Maximum Working Pressure: 1,160 psi (80 bar)
• Power Consumption: 2.4 kW (approximate)
• Electrical Requirements: 120V, single phase, 50/60 Hz + PE
• Ambient Temperature: 32 to 104°F (0 to 40°C)
• Dimensions (L × W × H): 23.6" × 12.6" × 13.9" (600 × 320 × 354 mm) – lid closed
• Weight: 88 lbs (40 kg) – empty

Meler SF4 — Available Configurations & Options

The SF4 is designed as a compact and easy-to-use hot melt adhesive system, with practical configuration options to support manual and low-volume packaging applications. Its flexible setup allows it to adapt to different operational needs while maintaining simple, reliable performance.

• Hose & Output Configuration: Supports up to two hose connections for single or dual-point adhesive application.
• Pump & Output Control: Available with different pump sizes and optional variable speed control to match application requirements.
• Bypass & Pressure Control: Configurable with mechanical or pneumatic bypass valves, with optional pressure control systems for improved regulation.
• Sensor & Monitoring Options: Supports selectable sensor types and optional low-level detection for improved system monitoring.

Common Packaging Applications

• Case Sealing
• Carton Sealing
• Tray Forming
• Manual Packaging Stations
• Small Packaging Lines
