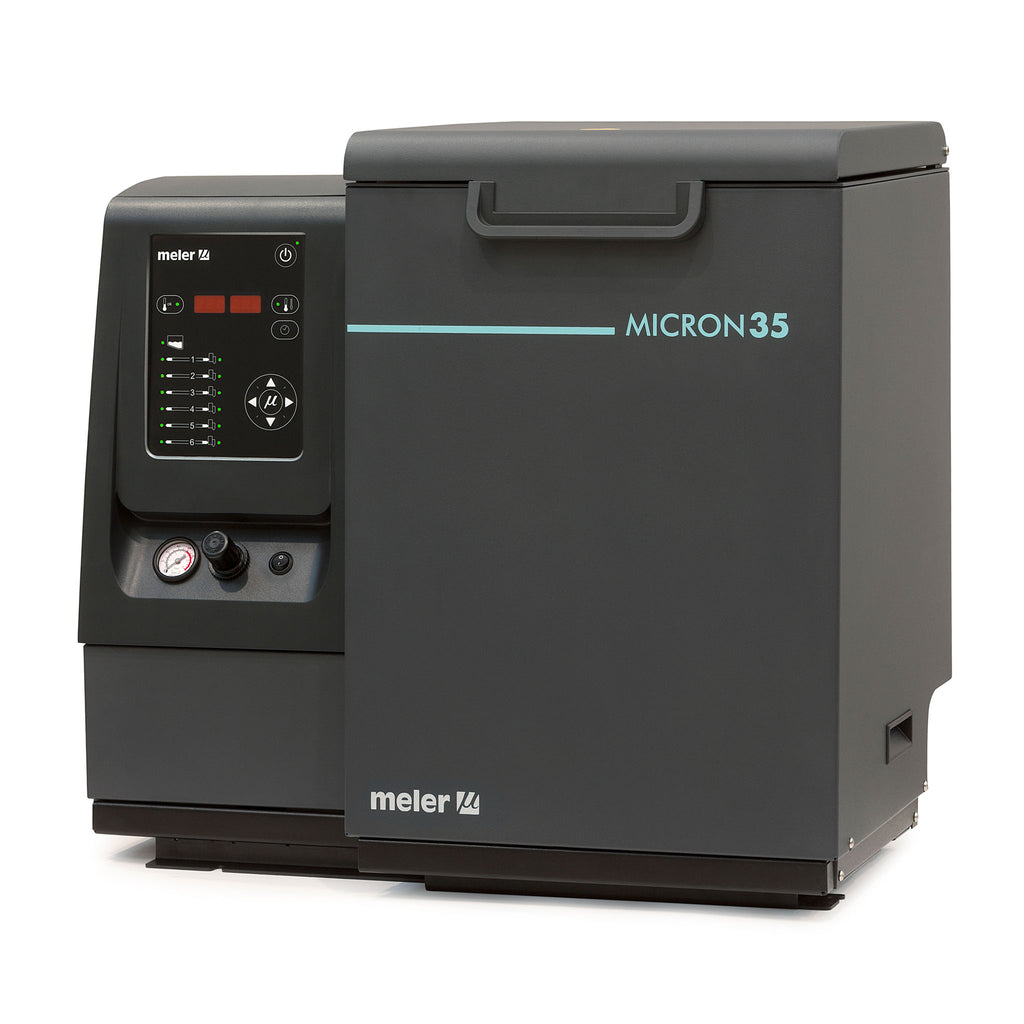

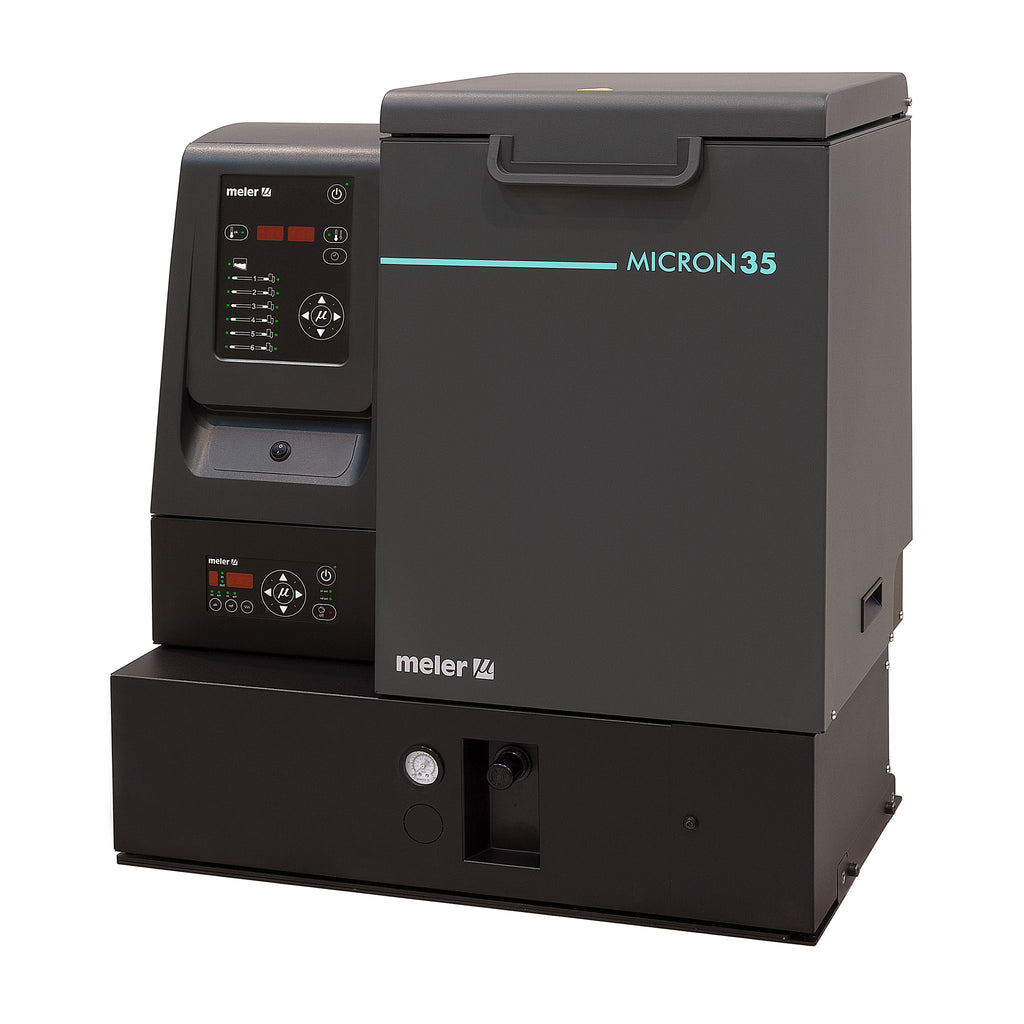

Meler Micron+ 35 Industrial Hot Melt System, 9.9 Gallon Unit - Configurable

High-Capacity Industrial Hot Melt System for Continuous Production

Engineered for high-demand packaging environments, the Meler Micron+ 35 delivers the output and reliability required for continuous industrial production. Compatible with PSA, EVA, and polyolefin (PO) hot melt adhesives, it features a 9.9 gallon tank and melting capacity up to 66.1 lbs/hr, providing a consistent adhesive supply for high-speed packaging lines where uptime and performance are critical.

Configurable with gear or piston pumps and capable of supporting up to 6 hose outputs, the system is well-suited for complex dispensing setups and multi-point application requirements. Its advanced temperature control system maintains stable adhesive viscosity while minimizing thermal degradation, ensuring consistent bonding quality during extended operation. Commonly used in case sealing, carton sealing, and fully automated packaging systems, the Micron+ 35 is designed to support demanding production schedules with dependable, high-capacity performance.

Advanced Features & Benefits of the Micron+ 35 Industrial Hot Melt System

• High-Capacity Adhesive Delivery: Engineered to maintain consistent adhesive supply for high-speed packaging lines and demanding production environments.
• Continuous Production Reliability: Designed for nonstop operation, supporting long production cycles without performance loss or interruptions.
• Maximum System Uptime: Built to minimize downtime and maintain stable operation in critical packaging processes where consistency is essential.
• Advanced Thermal Control: Maintains precise adhesive temperature across all operating conditions to ensure consistent bonding quality at high production speeds.
• Full-Line Integration Capability: Easily integrates with automated packaging systems for synchronized, high-efficiency operation.
• Heavy-Duty Industrial Design: Robust construction supports long-term performance in high-demand environments with consistent, repeatable results.

Technical Specifications

• Model: Micron+ 35
• Tank Capacity: 9.9 Gallons (37.4 L)
• Melting Rate: 66.1 lbs/hr (30.0 kg/hr)
• Pumping Capacity: Varies by Pump Type and Configuration
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives
• Pump Type: Gear or Piston (configurable)
• Number of Hose Outputs: Up to 6 (depending on configuration)
• Number of Electrical Outputs: 2, 4, or 6 (depending on configuration)
• Temperature Range:
• Standard: 104 to 392°F (40 to 200°C)
• High Temperature: 104 to 446°F (40 to 230°C)
• Temperature Control: RTD ±1°F (0.5°C)
• Maximum Working Pressure: 1,183 psi (81.6 bar)
• Power Consumption: Up to ~6.1 kW (depending on configuration)
• Electrical Requirements:
• 3N ~ 400V, 50/60 Hz + PE
• 3 ~ 230V, 50/60 Hz + PE (optional)
• Ambient Temperature: 32 to 104°F (0 to 40°C)
• Dimensions (L × W × H): 29.2" × 17.1" × 26.5" (742 × 435 × 673 mm) – lid closed
• Weight: 199 lbs (90.1 kg) – empty

Micron+ 35 — Available Configurations & Options

The Meler Micron+ 35 is designed for automated, high-speed packaging operations, offering configuration flexibility to support demanding production environments and full-line integration.

• Pump Type Options: Available with gear or piston pump configurations to support high-demand adhesive delivery and consistent performance.
• Hose & Output Configuration: Supports 2, 4, or 6 hose outputs, enabling complex, multi-point adhesive application across high-speed lines.
• Voltage & Electrical Options: Offered in multiple voltage configurations to meet industrial facility requirements and high-capacity systems.
• Control & Integration Capabilities: Designed for seamless integration into automated production lines with advanced system communication and control.
• Optional Accessories & Enhancements: Configurable with additional components such as automatic adhesive feeding systems, level detection, and connectivity options for monitoring and optimization.

Common Packaging Applications

• Case Sealing
• Carton Sealing
• Tray Forming
• High-Speed Packaging Lines
• Fully Automated Packaging Systems
