Meler Micron+ 20 Hot Melt Adhesive System, 5.2 Gallon Unit - Configurable

Versatile Hot Melt Adhesive System for Mid-Volume Manufacturing

Designed to support mid-volume packaging operations, the Meler Micron+ 20 provides the output and consistency required for more demanding production environments. Compatible with PSA, EVA, and polyolefin (PO) hot melt adhesives, it features a 5.2 gallon tank and melting capacity up to 41.9 lbs/hr, delivering a steady adhesive supply for packaging lines that require higher throughput and reliable, continuous performance.

The system can be configured with gear or piston pumps and supports up to 6 hose outputs, making it suitable for a variety of dispensing setups and multi-point application requirements. Its advanced temperature control system maintains consistent adhesive viscosity while reducing thermal degradation, helping ensure uniform application quality across extended production runs. Commonly used in case sealing, carton sealing, and automated packaging systems, the Micron+ 20 offers a scalable solution for growing production demands.

System Capabilities of the Micron+ 20 Mid-Volume Hot Melt Adhesive System

• High Throughput Performance: Designed to support consistent adhesive delivery across mid-volume packaging lines with increased production demands.
• Multi-Point Adhesive Distribution: Supports complex dispensing setups, allowing multiple application points to operate efficiently from a single system.
• Continuous Operation Design: Built for extended production runs, maintaining consistent performance during longer operating cycles.
• Precision Temperature Management: Maintains stable adhesive conditions to ensure consistent bonding quality across varying production speeds.
• Process Control Integration: Enables seamless coordination with packaging equipment for synchronized adhesive application and improved process control.
• Durable Industrial Construction: Engineered for reliability in demanding production environments, supporting long-term use with minimal interruption.

Specifications

• Model: Micron+ 20
• Tank Capacity: 5.2 Gallons (19.7 L)
• Melting Rate: 41.9 lbs/hr (19.0 kg/hr)
• Pumping Capacity: Varies by Pump Type and Configuration
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives

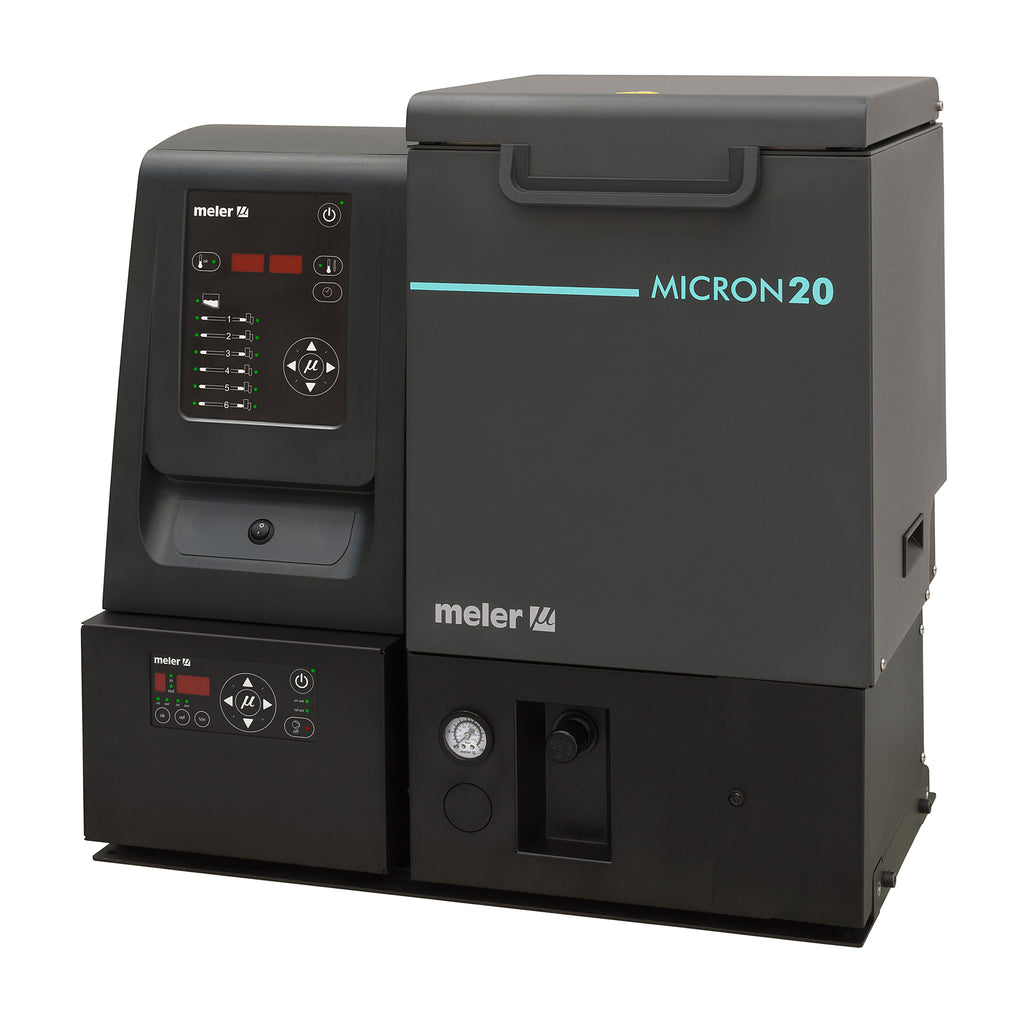

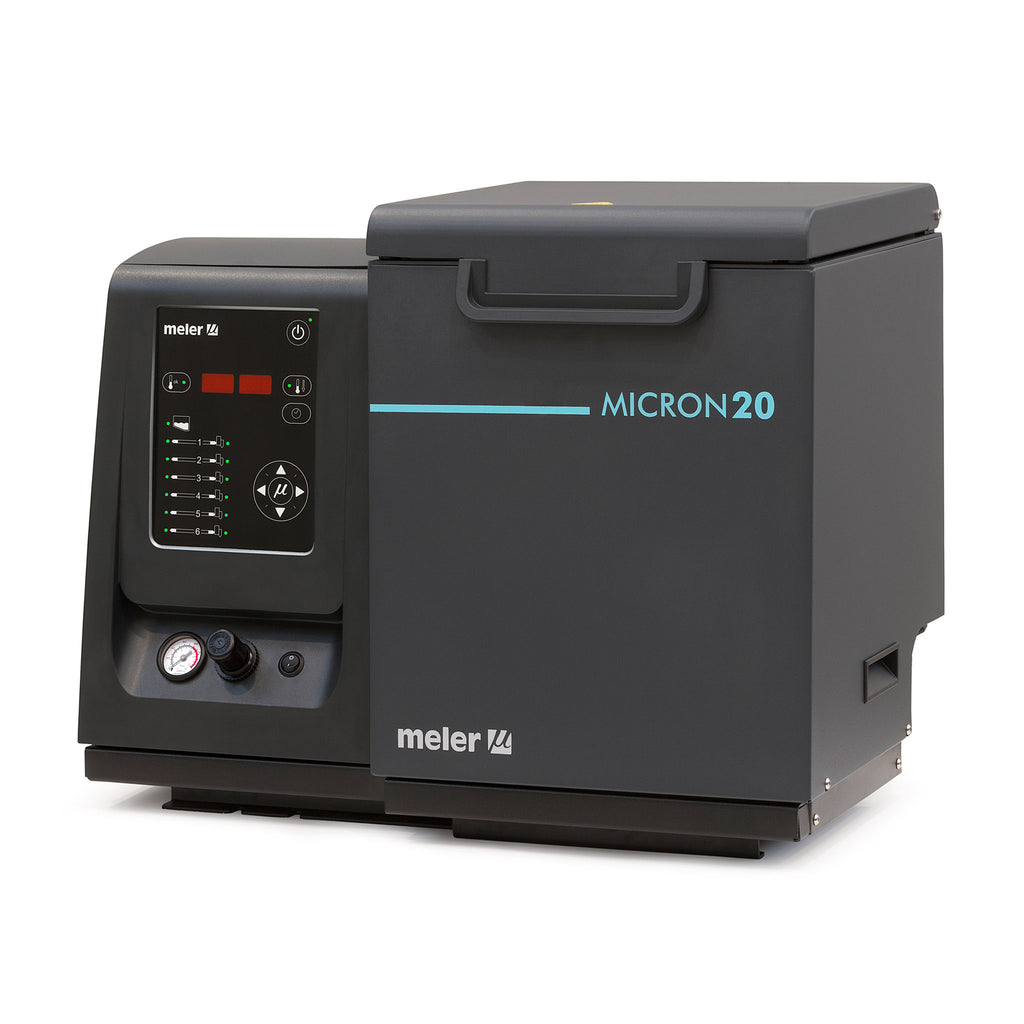

• Pump Type: Gear or Piston (configurable)
• Number of Hose Outputs: Up to 6 (depending on configuration)
• Number of Electrical Outputs: 2, 4, or 6 (depending on configuration)
• Temperature Range:
• Standard: 104 to 392°F (40 to 200°C)
• High Temperature: 104 to 446°F (40 to 230°C)
• Temperature Control: RTD ±1°F (0.5°C)
• Maximum Working Pressure: 1,183 psi (81.6 bar)
• Power Consumption: Up to ~5.4 kW (depending on configuration)
• Electrical Requirements:
• 1N ~ 230V, 50/60 Hz + PE
• 3N ~ 400V, 50/60 Hz + PE
• 3 ~ 230V, 50/60 Hz + PE (optional)
• 3 ~ 400V, 50/60 Hz + PE with transformer base (optional)
• Ambient Temperature: 32 to 104°F (0 to 40°C)
• Dimensions (L × W × H): 26.4" × 15.1" × 20.7" (671 × 383 × 526 mm) – lid closed
• Weight: 133 lbs (60.2 kg) – empty

Micron+ 20 — Available Configurations & Options

The Meler Micron+ 20 is engineered for scalable packaging systems and multi-point dispensing setups, providing the flexibility required for mid-volume production environments.

• Pump Type Options: Available with gear or piston pump configurations to match application requirements for continuous flow or controlled dispensing.
• Hose & Output Configuration: Supports 2, 4, or 6 hose outputs, making it suitable for multi-point adhesive application and expanded system layouts.
• Voltage & Electrical Options: Offered in multiple voltage configurations to meet facility requirements and support system scalability.
• Control & Integration Capabilities: Enables integration with packaging equipment for synchronized operation and improved process control.
• Optional Accessories & Enhancements: Configurable with additional components such as level sensors, automatic feeders, and system monitoring options.

Common Packaging Applications

• Case Sealing
• Carton Sealing
• Tray Forming
• Multi-Line Packaging Systems
• High-Throughput Packaging Operations
