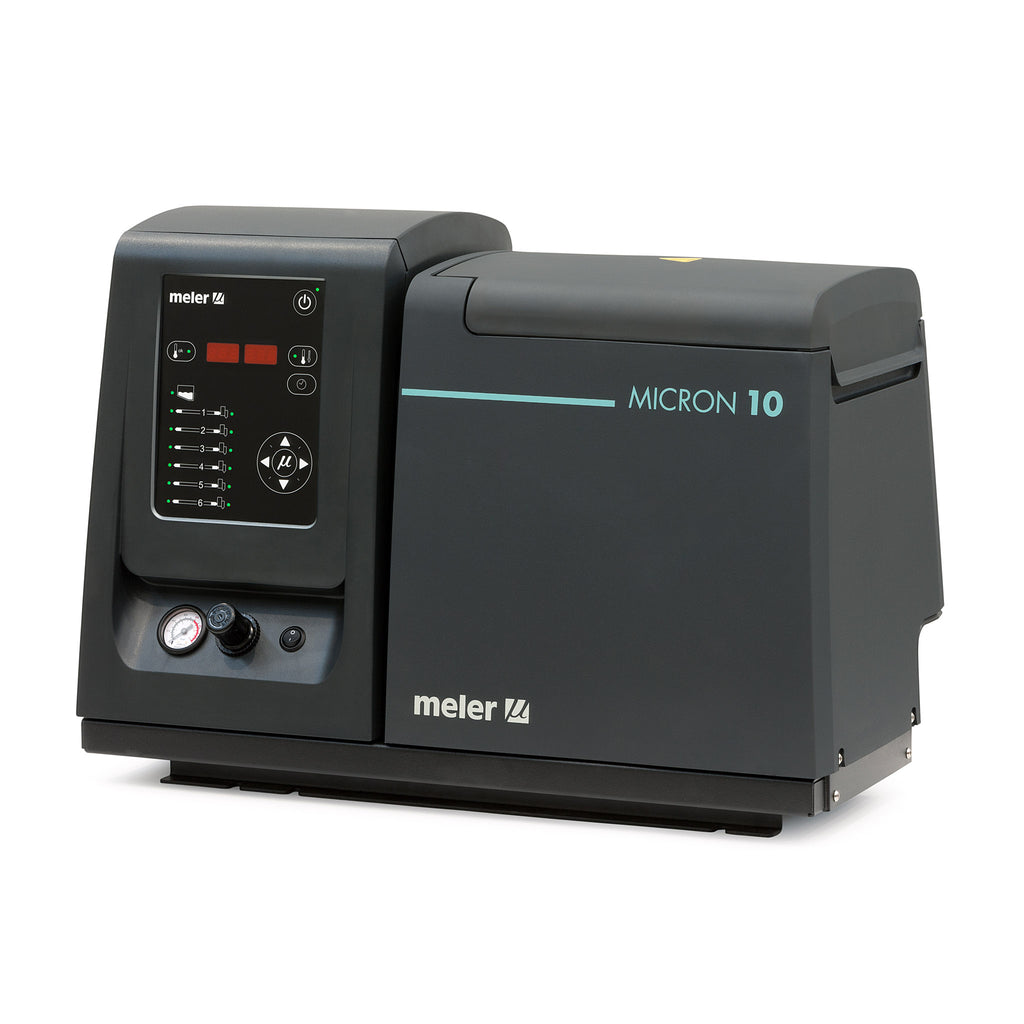

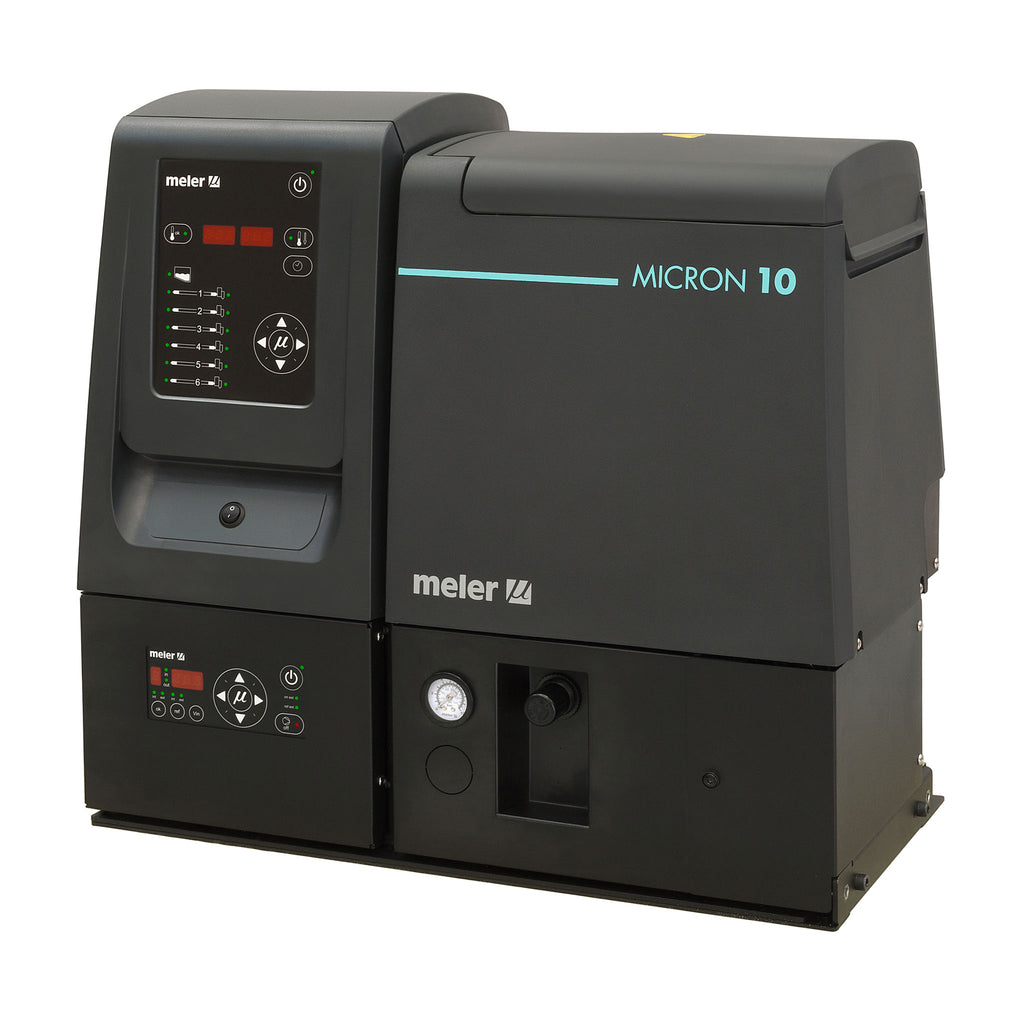

Meler Micron+ 10 Hot Melt Glue Melter, 2.6 Gallon Unit - Configurable

Flexible Hot Melt Glue Melter for Small Production Lines

Built for packaging operations that require greater output and flexibility, the Meler Micron+ 10 delivers consistent adhesive performance across a wide range of production environments. Compatible with PSA, EVA, and polyolefin (PO) hot melt adhesives, its 2.6 gallon tank and melting capacity up to 29.8 lbs/hr make it well-suited for small to mid-sized packaging lines where reliability and throughput are critical.

The system supports both gear and piston pump configurations and can be equipped with up to 6 hose outputs, allowing it to adapt to different dispensing setups and application demands. Precise temperature management helps maintain stable adhesive viscosity while minimizing degradation, ensuring consistent bonding quality. Commonly used in case sealing, carton sealing, and automated packaging processes, the Micron+ 10 provides a flexible solution for growing production requirements.

Performance Features of the Micron+ 10 Flexible Hot Melt Glue Melter

• Stable Adhesive Output: Designed to maintain consistent flow rates across small to mid-volume packaging lines, reducing variability during operation.
• Thermal Stability: Advanced heating design helps maintain consistent adhesive viscosity, improving bond quality and application reliability.
• Production-Oriented Design: Built for continuous use in packaging environments where dependable performance and uptime are essential.
• Optimized Energy Usage: Efficient heating system reduces unnecessary power consumption while maintaining operating temperatures.
• Integrated System Controls: Touchscreen interface allows operators to monitor system status, adjust parameters, and manage operation with ease.
• Service-Friendly Construction: Designed for easy access to internal components, simplifying routine maintenance and minimizing downtime.

System Specifications

• Model: Micron+ 10
• Tank Capacity: 2.6 Gallons (9.7 L)
• Melting Rate: 29.8 lbs/hr (13.5 kg/hr)
• Pumping Capacity: Varies by Pump Type and Configuration
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives
• Pump Type: Gear or Piston (configurable)
• Number of Hose Outputs: Up to 6 (depending on configuration)
• Number of Electrical Outputs: 2, 4, or 6 (depending on configuration)
• Temperature Range:
• Standard: 104 to 392°F (40 to 200°C)
• High Temperature: 104 to 446°F (40 to 230°C)
• Temperature Control: RTD ±1°F (0.5°C)
• Maximum Working Pressure: 1,183 psi (81.6 bar)
• Power Consumption: Up to ~5.4 kW (depending on configuration)
• Electrical Requirements:
• 1N ~ 230V, 50/60 Hz + PE
• 3N ~ 400V, 50/60 Hz + PE
• 3 ~ 230V, 50/60 Hz + PE (optional)
• 3 ~ 400V, 50/60 Hz + PE with transformer base (optional)
• Ambient Temperature: 32 to 104°F (0 to 40°C)
• Dimensions (L × W × H): 26.4" × 13.3" × 18.9" (671 × 339 × 481 mm) – lid closed
• Weight: 101 lbs (45.7 kg) – empty

Micron+ 10 — Available Configurations & Options

The Meler Micron+ 10 is designed to support flexible packaging line configurations, adapting to a range of production requirements and application setups.

• Pump Type Options: Available with gear or piston pump configurations to match application requirements for continuous flow or precise, intermittent dispensing.
• Hose & Output Configuration: Supports 2, 4, or 6 hose outputs, allowing the system to handle multiple application points across packaging lines.
• Voltage & Electrical Options: Offered in multiple voltage configurations to meet facility requirements, including single-phase and three-phase power setups.
• Control & Integration Capabilities: Supports system communication and external control for integration into automated packaging processes.
• Optional Accessories & Enhancements: Configurable with additional components such as level sensors and adhesive feeding systems to support production efficiency.

Common Packaging Applications

• Case Sealing
• Carton Sealing
• Tray Forming
• Automated Packaging Lines
• Secondary Packaging Operations

Explore Other Micron+ Models

• Micron+ 5 – Compact 1.4 gallon system for low-volume applications

• Micron+ 20 – 5.2 gallon system for higher throughput applications
• Micron+ 35 – 9.2 gallon system for continuous production environments
• Micron+ Melt-On-Demand – Tank-free system for reduced adhesive degradation and on-demand melting
