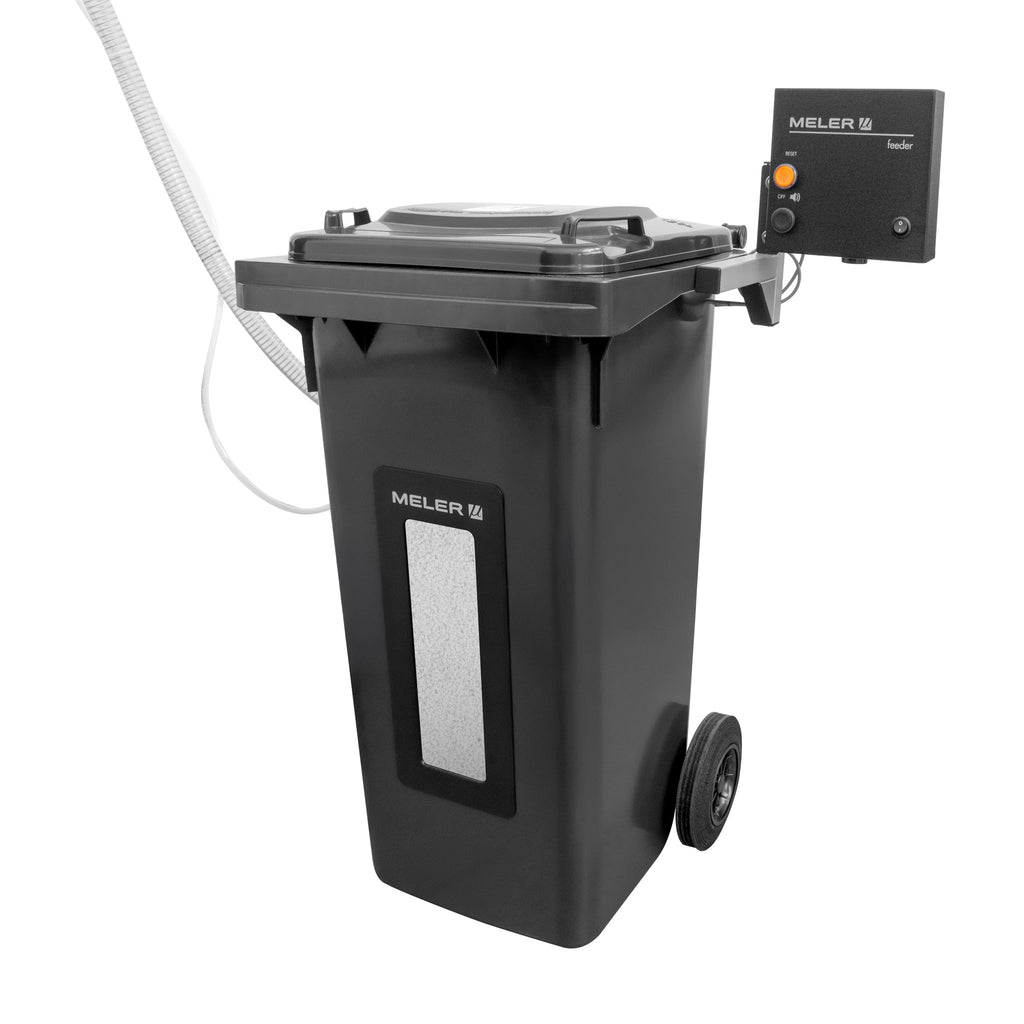

Meler Automatic Adhesive Feeding System – 110 lb Container

Automatic Adhesive Feeder for Hot Melt Pellet Supply Systems

The Meler Automatic Adhesive Feeding System is designed to maintain a consistent adhesive level in hot melt melters by automatically transferring adhesive pellets from a sealed container to the tank. Using a sensor-based system, it detects low adhesive levels and automatically refills the tank without operator intervention.

Its closed, hermetic design helps prevent contamination and adhesive degradation while improving operator safety by eliminating manual refilling. With integrated vibration to prevent material compaction and support continuous flow, the system ensures reliable adhesive supply and reduces unplanned downtime in production environments.

Features and Benefits of the Meler Adhesive Autofeeder

• Automatic Adhesive Refilling: Maintains a consistent adhesive level by automatically transferring pellets when low levels are detected.
• Hermetically Sealed System: Prevents contamination, dust ingress, and adhesive degradation to protect material quality.
• Integrated Vibrating System: Prevents pellet compaction to ensure smooth, consistent adhesive feeding.
• Improved Operator Safety: Eliminates manual refilling, reducing exposure to hot materials and risk of burns.
• Continuous Production Operation: Prevents adhesive run-out to reduce unplanned downtime and line stoppages.
• Level Monitoring and Alarm System: Provides visual and audible alerts for low adhesive levels and feeding faults.
• 110 lb Container Capacity: Supports longer run times and reduces refill frequency.

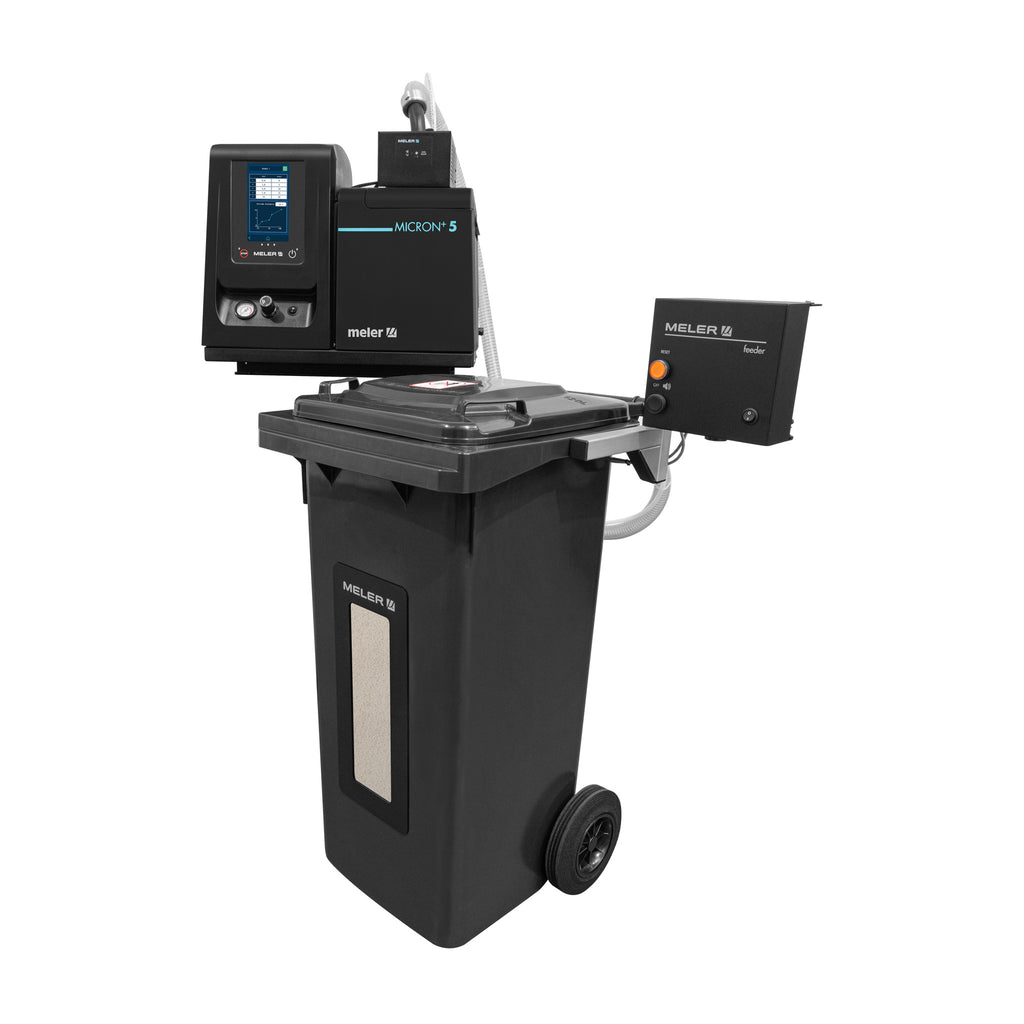

• Compatible with Meler Melters: Designed for integration across the full range of Meler hot melt systems.

Specifications

• Product Type: Hot Melt Adhesive Autofeed System
• Adhesive Type: Pellets or Beads up to 12 mm
• Compatibility: Compatible with the Full Range of Meler Hot Melt Melters
• Container Capacity: 110 lb (50 kg)
• Maximum Transfer Length: Up to 82 ft (25 m)
• Maximum Transfer Height: Up to 26 ft (8 m)
• Maximum Recharge Speed: Up to 882 lb/h (400 kg/h)
• Standard Pipe Dimensions: Ø 30 mm × 4 m
• Recommended Air Pressure: 87 psi (6 bar)
• Air Consumption (at 6 bar): 360 L/min
• System Power Supply: 1N ~ 230V, 50/60 Hz + PE
• Filter: 20 mesh (<1 mm)

Available Configurations & Options

• 110 lb (50 kg) Container Option: Increases system autonomy by extending time between refills.
• Minimum Level Sensor (Container): Enables automatic refill of the feeder container to maintain continuous operation.
• Remote Reset Function: Allows the system to be reset after alarms in installations where the unit is not easily accessible.
• Optional Flow Grid: Improves adhesive flow and reduces the risk of pellet compaction during feeding.
• Up to Two Adhesive Outlets: Supports feeding adhesive to multiple melters or connection points.

Common Applications

• Packaging and End-of-Line Systems
• Case and Carton Sealing
• Labeling and Product Assembly
• General Industrial Adhesive Applications
