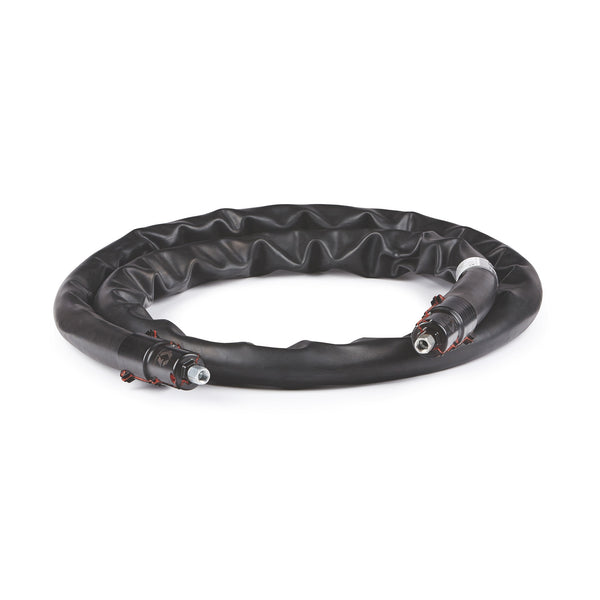

Graco 24U765 Water-Wash InvisiPac Heated Hot Melt Hose, No. 6 Core, 6 ft

SKU: GRACO 24U765

Manufacturer Part #: 24U765

UPC: 633955581494

11 product options available.

Type: Hot Melt Hose
Brand: Graco

Graco 24U765 InvisiPac Water-Wash Heated Hose – 6 ft Hot Melt Adhesive Hose

Designed for wash-down production environments, the Graco 24U765 InvisiPac water-wash heated hose supports reliable adhesive transfer while allowing routine equipment cleaning. This 6 ft water-wash hot melt hose is built for use with Graco InvisiPac tankless hot melt systems, maintaining consistent adhesive temperature between the melter and dispensing valve. Its IPX6-rated construction helps protect the hose during high-pressure washdown, while the PTFE-lined core and stainless steel couplings ensure dependable adhesive flow in demanding packaging and industrial applications.

Key Wash-Down Features of the Graco 24U765 InvisiPac Heated Hose

IPX6 Rated for Wash-Down Environments: The Graco 24U765 water-wash heated hose is designed to withstand high-pressure equipment cleaning, allowing safe washdown without removing the hose from the system.
6 ft Hose Length for Flexible Routing: This hose length provides additional reach between the InvisiPac melter and dispensing valve while maintaining efficient adhesive transfer.
Designed for Graco InvisiPac Systems: Engineered specifically for Graco InvisiPac tankless hot melt systems, ensuring proper heating control and system compatibility.
PTFE-Lined Core with Stainless Steel Couplings: The No. 6 PTFE core supports smooth adhesive flow and high temperature resistance, while stainless steel fittings provide durability in industrial environments.
Heated Adhesive Delivery: Integrated heating maintains consistent hot melt adhesive temperature during transfer from the melter to the applicator.

Specifications

Part Number: 24U765
Hose Type: Water-Wash InvisiPac Heated Hose
Hose Core Size: No. 6 Core (0.308 in ID)
Hose Length: 6 ft (1.8 m)
Swivel Fitting: 0.31 ID (9/16-18 JIC(f))
Max Working Pressure: 1500 psi (103 bar, 10 MPa)
Max Temperature: 400°F (204°C)
Voltage: 230 VAC, 50/60 Hz
Power Consumption: 60 Watts per Foot
Wetted Parts: PTFE Core, Stainless Steel Couplings
Minimum Bend Radius: 8 in (203 mm)
Certifications: IPX6 Rated

Hotmelt.com is powered by APPLIED Adhesives, your single source for adhesives, dispensing equipment, and expert service. We provide everything you need to keep your operations running smoothly.

Our end-to-end solutions help you save time, reduce costs, and improve efficiency. Whether you need hot melt adhesives, equipment repair, or reliable replacement parts, we have you covered.

Questions about Graco 24U765 InvisiPac Hot Melt Hose? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

The Graco Water-Wash InvisiPac Heated Hot Melt Hose features a No. 6 core (0.308 in ID) and is available in lengths from 4 ft to 25 ft for use with Graco InvisiPac hot melt systems.

View all Graco InvisiPac Hot Melt Hose

SKU	Hose Length
GRACO 24U763	4 Foot Hose
GRACO 24U765	6 Foot Hose
GRACO 24U766	8 Foot Hose
GRACO 24U767	10 Foot Hose
GRACO 24U768	12 Foot Hose
GRACO 24U769	14 Foot Hose
GRACO 24U771	16 Foot Hose
GRACO 24U772	18 Foot Hose
GRACO 24U773	20 Foot Hose
GRACO 24U774	22 Foot Hose
GRACO 24U776	25 Foot Hose
