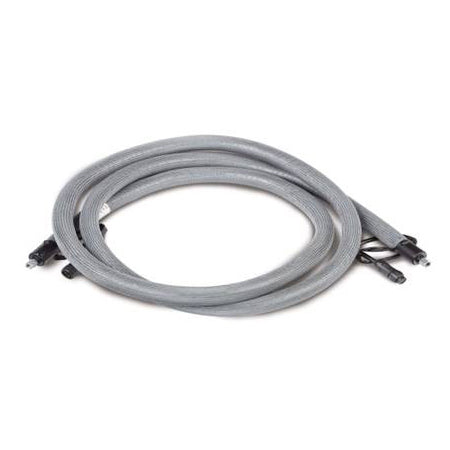

Graco 127409 Standard InvisiPac Heated Hot Melt Hose, No. 6 Core, 22 ft

SKU: GRACO 127409

Manufacturer Part #: 127409

UPC: 633955679320

11 product options available.

Type: Hot Melt Hose
Brand: Graco

Graco 127409 InvisiPac Heated Hose – 22 ft Standard Hot Melt Hose

The Graco 127409 InvisiPac heated hose is a 22 ft standard hot melt adhesive hose designed for use with Graco InvisiPac tankless hot melt systems. Its longer hose length supports extended routing between the melter and dispensing valve while helping maintain consistent adhesive temperature during operation. This heated hot melt hose features a No. 6 PTFE-lined core with stainless steel couplings and operates up to 1500 psi and 400°F, delivering dependable adhesive transfer for industrial packaging and manufacturing environments.

Graco 127409 InvisiPac Heated Hose Key Performance Features

Extended 22 ft Hose Length: The longer hose length allows greater routing distance between the InvisiPac melter and dispensing valve, supporting larger equipment layouts.
Designed for InvisiPac Tankless Systems: The 127409 heated hose is engineered specifically for use with Graco InvisiPac tankless hot melt systems, ensuring proper heating control and reliable compatibility.
Maintains Adhesive Temperature During Transfer: Integrated heating helps keep hot melt adhesive at a stable viscosity as material travels through the hose to the dispensing valve.
PTFE-Lined Core with Stainless Steel Couplings: A No. 6 PTFE core paired with stainless steel fittings supports dependable adhesive flow and resistance to high operating temperatures.
Industrial Pressure and Temperature Rating: Built for operation up to 1500 psi working pressure and 400°F, supporting demanding hot melt adhesive dispensing applications.

Technical Specifications

Part Number: 127409
Hose Type: Standard InvisiPac Heated Hose
Hose Core Size: No. 6 Core (0.308 in ID)
Hose Length: 22 ft (6.7 m)
Swivel Fitting: 0.31 ID (9/16-18 JIC(f))
Max Working Pressure: 1500 psi (103 bar, 10 MPa)
Max Temperature: 400°F (204°C)
Voltage: 230 VAC, 50/60 Hz
Power Consumption: 50 Watts per Foot
Wetted Parts: PTFE Core, Stainless Steel Couplings
Minimum Bend Radius: 8 in (203 mm)
Certifications: UL 499, CSA C22.2 No. 88

Hotmelt.com is powered by APPLIED Adhesives, your single source for adhesives, dispensing equipment, and expert service. We provide everything you need to keep your operations running smoothly.

Our end-to-end solutions help you save time, reduce costs, and improve efficiency. Whether you need hot melt adhesives, equipment repair, or reliable replacement parts, we have you covered.

Questions about Graco 127409 InvisiPac Hot Melt Hose? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

The Graco Standard InvisiPac Heated Hot Melt Hose features a No. 6 core (0.308 in ID) and is available in lengths from 4 ft to 25 ft for use with Graco InvisiPac hot melt systems.

View all Graco InvisiPac Hot Melt Hose

SKU	Hose Length
GRACO 127401	4 Foot Hose
GRACO 127402	6 Foot Hose
GRACO 127404	8 Foot Hose
GRACO 126389	10 Foot Hose
GRACO 127405	12 Foot Hose
GRACO 127406	14 Foot Hose
GRACO 127407	16 Foot Hose
GRACO 127408	18 Foot Hose
GRACO 126483	20 Foot Hose
GRACO 127409	22 Foot Hose
GRACO 126534	25 Foot Hose
