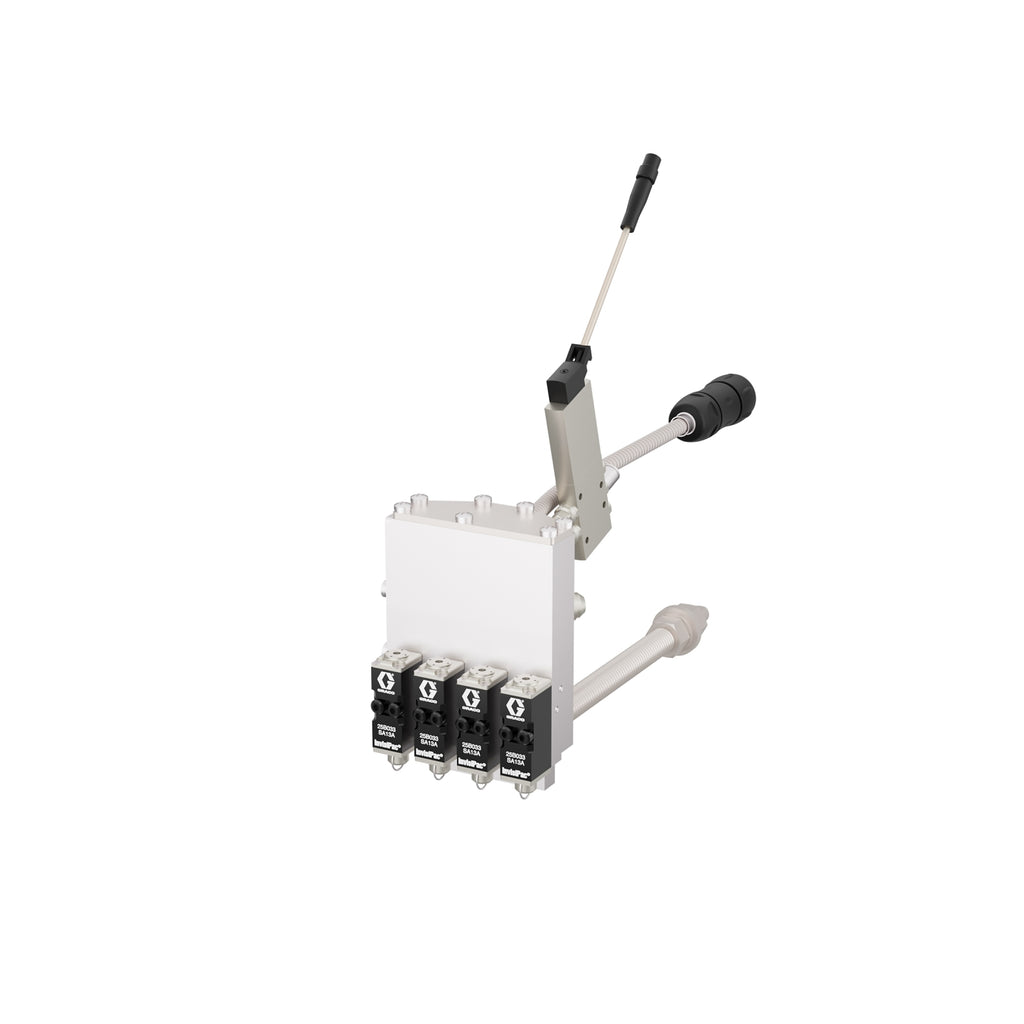

Graco 25B036 InvisiPac GM100 Low-Profile Quad Hot Melt Applicator with 24 VDC Solenoid and Ni 120 RTD

Graco GM100 Low-Profile Quad Hot Melt Adhesive Applicator for Case Sealing

With a low-profile quad layout, the Graco 25B036 InvisiPac GM100 hot melt applicator is designed for high-speed case and carton sealing applications where vertical clearance is limited. The four-module configuration supports precise dot and stitch placement across multiple dispense points while maintaining consistent adhesive flow. Its plug-free design helps eliminate nozzle plugging and reduce adhesive char, minimizing downtime and supporting reliable operation in continuous packaging environments.

When used with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GM100 supports clean adhesive delivery throughout the dispensing system. The applicator features a 24 VDC solenoid valve for dependable high-speed cycling and a Ni 120 RTD for accurate temperature monitoring. With a heat-up time of under 10 minutes and a compact low-profile quad design, this configuration is well suited for packaging line equipment and high-speed adhesive applications that require consistent multi-point dispensing in space-constrained layouts.

This model is part of the Graco InvisiPac GM100 applicator series. View all available GM100 configurations here.

Benefits of a Low-Profile Quad GM100 Hot Melt Applicator Design

• Fast Start-Up: Reaches operating temperature in about 10 minutes, helping production lines resume quickly after startup or routine maintenance.
• Low-Profile Quad Design: Four adhesive modules are arranged in a low-profile layout to fit packaging equipment where vertical clearance is limited.
• Clean, Plug-Free Adhesive Flow: The InvisiPac™ free-flow adhesive path reduces adhesive char and helps prevent nozzle plugging, lowering maintenance demands.
• Electrical Operation: Uses a 24 VDC solenoid valve with a Ni 120 RTD to provide dependable valve response and accurate temperature monitoring during continuous operation.
• Pneumatic Actuation: Adhesive output is controlled through air-opened, air-closed operation to maintain consistent dispensing across all four modules.
• High-Speed Application Capability: Supports reliable dot and stitch adhesive application at speeds exceeding 10,000 cycles per minute for case and carton sealing.

Technical Specifications

• Series: InvisiPac GM100
• Model: 25B036
• Type: Hot Melt Applicator
• Style: Low Profile - Quad
• Number of Modules: 4
• Mode of Operation: Air Opened, Air Closed
• Speed: > 10,000 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 24 VDC
• RTD Type: Ni 120 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 65 psi (0.44 MPa, 4.4 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down Applications: Yes
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
