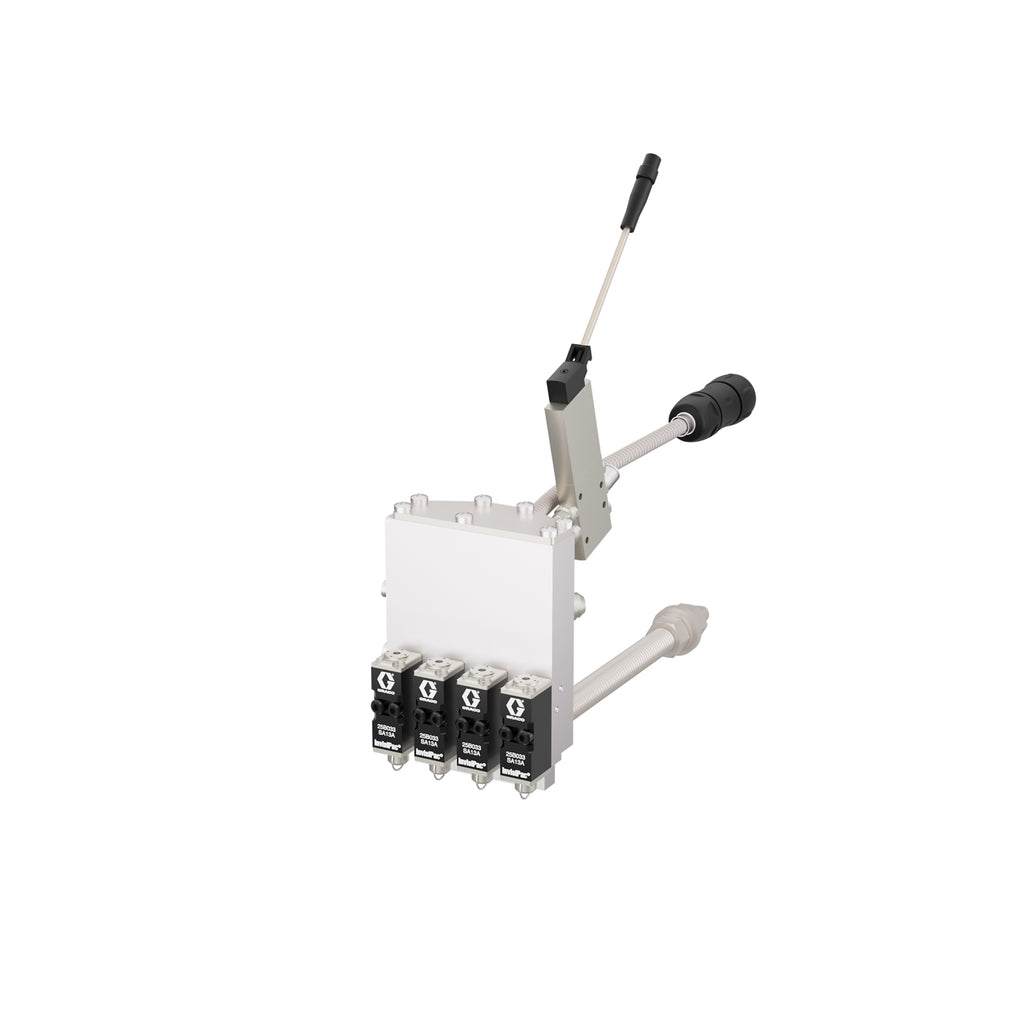

Graco 25B033 InvisiPac GM100 Low-Profile Quad Hot Melt Applicator with 24 VDC Solenoid and Pt 100 RTD

InvisiPac 25B033 GM100 Low-Profile Quad Adhesive Dispenser Overview

Designed to deliver four-point adhesive output in space-constrained packaging lines, the Graco 25B033 InvisiPac GM100 low-profile quad hot melt applicator provides precise adhesive placement across multiple dispense locations without sacrificing accessibility or performance. The low-profile quad configuration supports accurate dot and stitch application while maintaining consistent adhesive flow. Its plug-free design helps eliminate nozzle plugging and reduce adhesive char, minimizing downtime and supporting reliable operation in high-speed case and carton sealing environments.

When used with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GM100 supports clean adhesive delivery throughout the dispensing system. The applicator features a 24 VDC solenoid valve for dependable high-speed cycling and a Pt 100 RTD for accurate temperature monitoring. With a heat-up time of under 10 minutes and a low-profile quad layout, this configuration is ideal for industrial packaging equipment and packaging automation systems that require compact, multi-point adhesive application with consistent performance.

See additional InvisiPac GM100 applicator configurations.

Low-Profile Design Advantages of the Graco 25B033 Quad Hot Melt Applicator

• Low-Profile Quad Layout: Four adhesive modules are arranged in a low-profile configuration to allow multi-point adhesive application in packaging lines with limited vertical clearance.
• Clean, Plug-Free Adhesive Flow: The InvisiPac™ free-flow adhesive path minimizes adhesive char and helps prevent nozzle plugging, reducing maintenance and unplanned downtime.
• Electrical Operation: Equipped with a 24 VDC solenoid valve and a Pt 100 RTD to support dependable valve actuation and accurate temperature monitoring during continuous operation.
• Pneumatic Control: Uses air-opened, air-closed operation to regulate adhesive output consistently across all four modules without mechanical spring return.
• Fast Start-Up Time: Heats to operating temperature in approximately 10 minutes, allowing production lines to resume operation quickly after startup or service.
• High-Speed Sealing Capability: Supports reliable dot and stitch adhesive dispensing at speeds exceeding 10,000 cycles per minute for case and carton sealing applications.

Specifications

• Series: InvisiPac GM100
• Model: 25B033
• Type: Hot Melt Applicator
• Style: Low Profile - Quad
• Number of Modules: 4
• Mode of Operation: Air Opened, Air Closed
• Speed: > 10,000 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 24 VDC
• RTD Type: Pt 100 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 65 psi (0.44 MPa, 4.4 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down Applications: Yes
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
