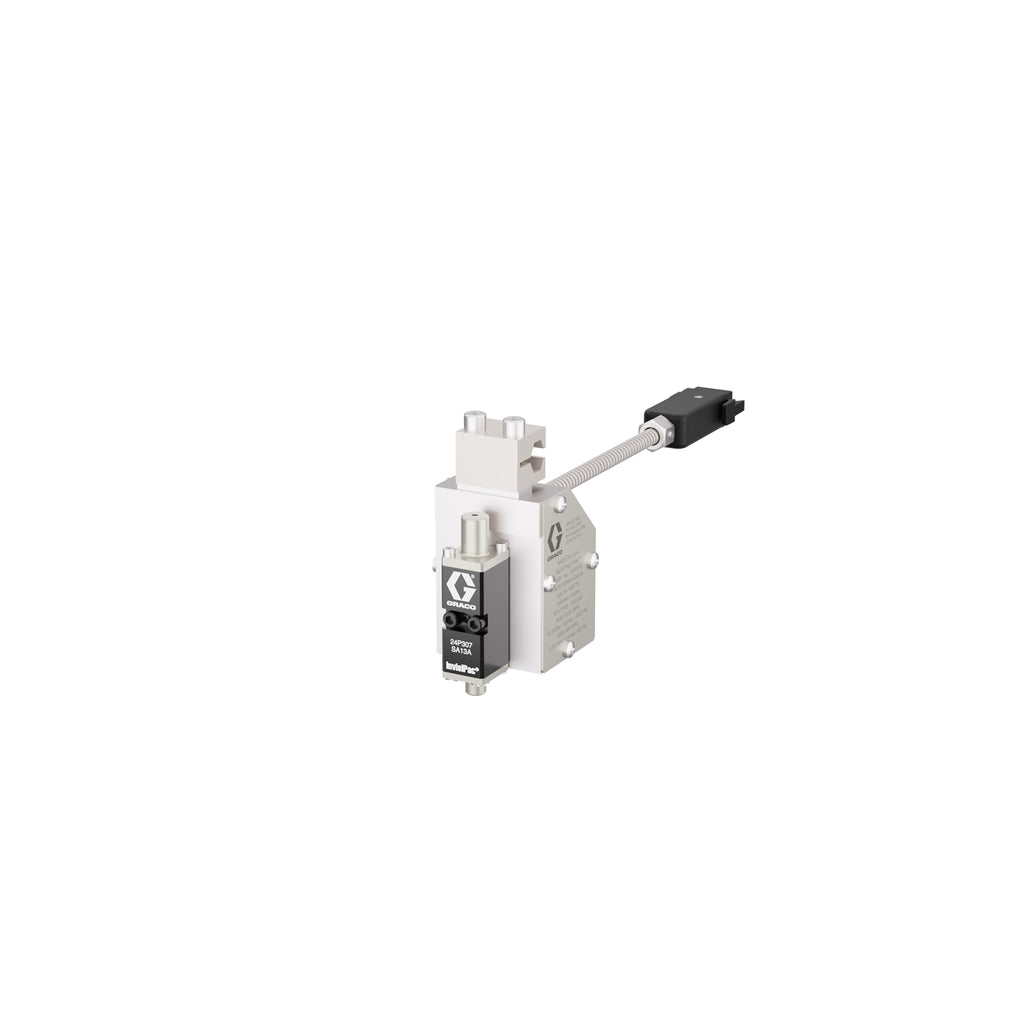

Graco 24P307 InvisiPac GS35 Single Hot Melt Applicator with No Solenoid and Ni 120 RTD

Graco GS35 Single Hot Melt Applicator for Packaging Equipment

The Graco 24P307 InvisiPac GS35 is a single hot melt applicator configured without an onboard solenoid, designed for constant bead dispensing in case and carton sealing applications. As a plug-free hot melt adhesive applicator, it helps eliminate nozzle plugging and reduce adhesive char, supporting consistent adhesive flow and improved uptime in continuous packaging operations. Its free-flow manifold design and integrated applicator filtering minimize dead zones where char can accumulate, helping maintain clean, low-maintenance performance.

The applicator incorporates a Ni 120 RTD for accurate temperature monitoring and reaches operating temperature in under 10 minutes, allowing production lines to start quickly. When used with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GS35 delivers clean, stable adhesive flow throughout the dispensing system. With air-opened, spring-closed operation and cycle speeds up to 3,500 cycles per minute, this single-module GS35 is well suited for high-speed industrial packaging and continuous manufacturing adhesive applications.

Looking for another InvisiPac GS35 configuration? View the full GS35 applicator lineup here.

Benefits of the Graco 24P307 InvisiPac GS35 Single Applicator

• Plug-Free Adhesive Delivery: A free-flow InvisiPac™ adhesive path with built-in filtration reduces adhesive char and prevents nozzle plugging, helping keep the applicator clean and production running.
• Optimized for Constant Bead Applications: Engineered specifically for continuous bead dispensing in case and carton sealing, where steady adhesive output is critical.
• Externally Controlled Actuation: Supplied without an onboard solenoid, allowing the applicator to be controlled by external valves or machine-level pneumatics.
• Stable Pneumatic Operation: Air-opened, spring-closed valve design provides consistent bead cutoff and reliable operation at speeds up to 3,500 cycles per minute.
• Reliable Temperature Monitoring: Equipped with a Ni 120 RTD to deliver dependable temperature feedback and help maintain consistent adhesive performance during long runs.
• Quick Heat-Up for Faster Starts: Reaches operating temperature in under 10 minutes, reducing startup time and minimizing delays during line restarts.

Technical Specifications

• Series: InvisiPac GS35
• Model: 24P307
• Type: Hot Melt Applicator
• Style: Single
• Number of Modules: 1
• Mode of Operation: Air Opened, Spring Closed
• Speed: > 3,500 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: None
• RTD Type: Ni 120 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 40 psi (0.3 MPa, 2.7 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down/Waterwash Applications: No
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
