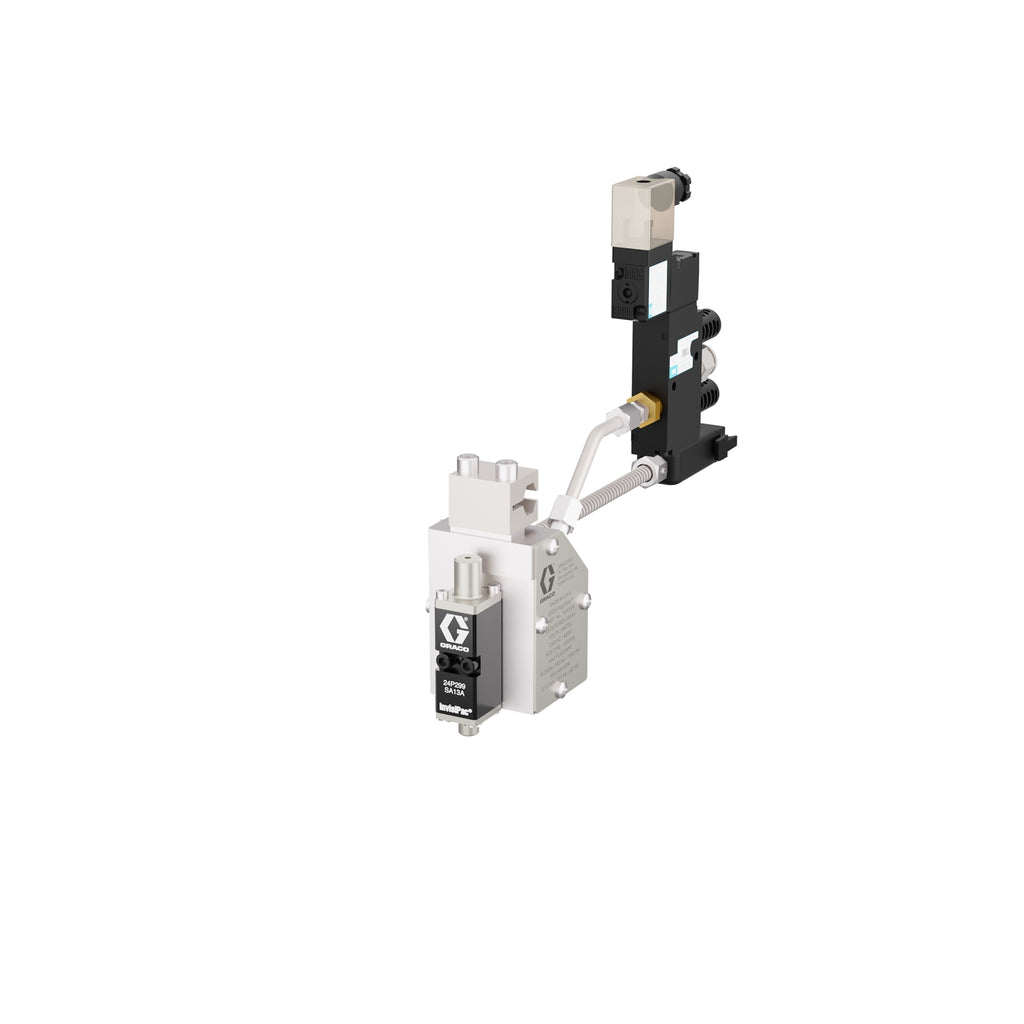

Graco 24P299 InvisiPac GS35 Single Hot Melt Applicator with 24 VDC Solenoid and Ni 120 RTD

Graco GS35 Single Plug-Free Hot Melt Applicator for Packaging Lines

Designed for consistent constant bead adhesive output, the Graco 24P299 InvisiPac GS35 single hot melt applicator delivers reliable adhesive flow for case and carton sealing operations that require stable, uninterrupted dispensing. Its plug-free design helps eliminate nozzle plugging and reduce adhesive char, supporting improved uptime and cleaner operation. A free-flow adhesive path with integrated filtering minimizes dead zones where char can accumulate, helping maintain dependable performance in continuous packaging environments.

The applicator features a 24 VDC solenoid valve for responsive actuation and a Ni 120 RTD for accurate temperature monitoring during production. When used with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GS35 provides clean, stable adhesive delivery throughout the dispensing system. With a heat-up time of under 10 minutes, air-opened, spring-closed operation, and cycle speeds up to 3,500 cycles per minute, this single-module GS35 is well suited for constant bead applications in packaging automation and industrial packaging equipment.

See additional Graco InvisiPac GS35 applicator configurations.

Benefits of a Single GS35 Hot Melt Applicator Design

• Plug-Free, Low-Maintenance Design: A free-flow adhesive path with integrated filtering helps prevent nozzle plugging and limits adhesive char, reducing cleanup and unplanned downtime.
• Fast Heat-Up for Quicker Starts: Reaches operating temperature in under 10 minutes, allowing packaging lines to resume production quickly after startup or maintenance.
• Electrical Control & Monitoring: Uses a 24 VDC solenoid valve paired with a Ni 120 RTD to support responsive valve actuation and consistent temperature feedback during continuous operation.
• Air-Opened, Spring-Closed Valve Action: Provides dependable shutoff and stable bead control, supporting repeatable dispensing at speeds up to 3,500 cycles per minute.
• Optimized for Constant Bead Applications: Engineered specifically for continuous bead dispensing in case and carton sealing, delivering steady adhesive flow without interruptions.
• Single-Module Applicator Layout: Compact single configuration integrates easily into packaging automation and box sealing equipment where space and reliability are critical.

Applicator Specifications

• Series: InvisiPac GS35
• Model: 24P299
• Type: Hot Melt Applicator
• Style: Single
• Number of Modules: 1
• Mode of Operation: Air Opened, Spring Closed
• Speed: > 3,500 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 24 VDC
• RTD Type: Ni 120 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 40 psi (0.3 MPa, 2.7 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down/Waterwash Applications: No
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
