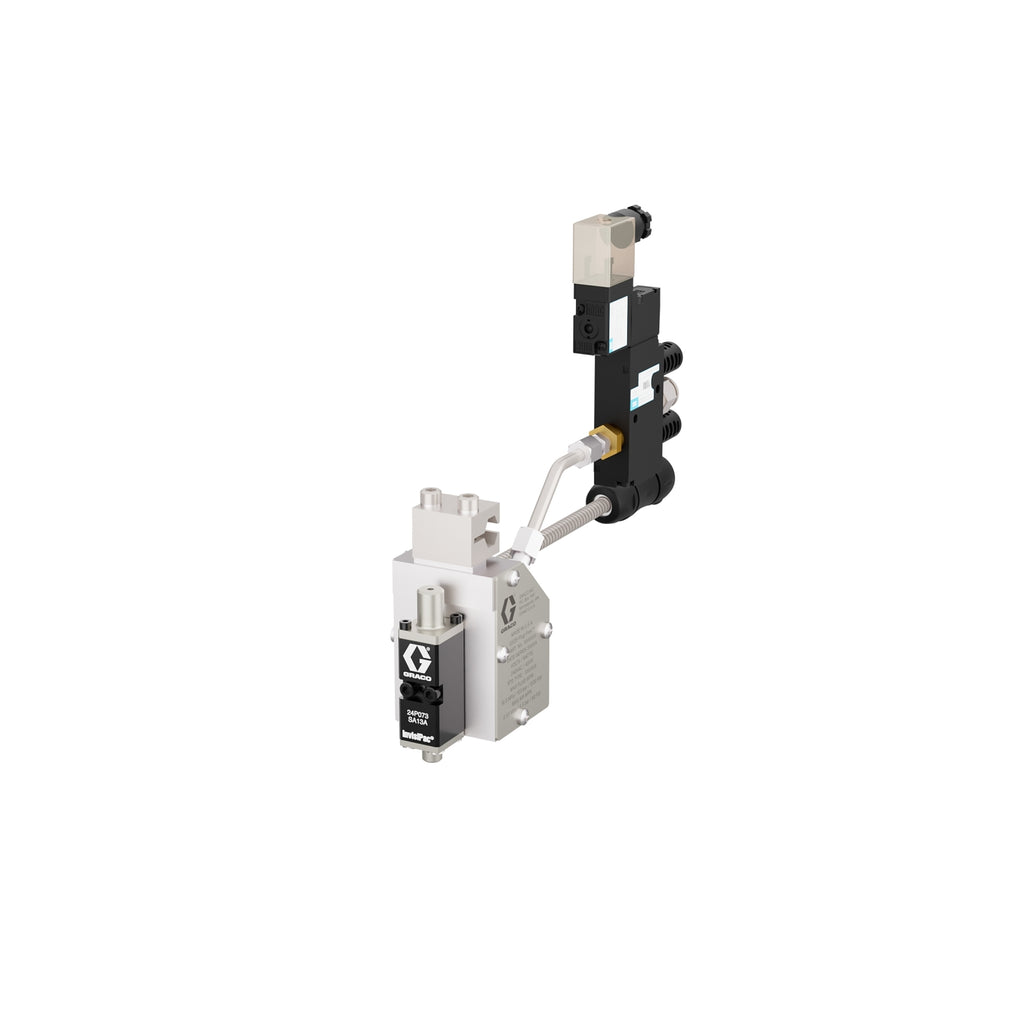

Graco 24P073 InvisiPac GS35 Single Hot Melt Applicator with 24 VDC Solenoid and Pt 100 RTD

GS35 24P073 InvisiPac Single Hot Melt Applicator for Constant Bead Applications

With a single-module layout optimized for constant bead dispensing, the Graco 24P073 InvisiPac GS35 hot melt applicator is built for reliable case and carton sealing in high-speed packaging lines. Its plug-free design helps eliminate nozzle plugging and reduce adhesive char, improving uptime while maintaining consistent adhesive flow during continuous operation. A free-flow adhesive path combined with integrated filtering minimizes dead zones where char can form, supporting clean, low-maintenance performance in demanding packaging environments.

The applicator is equipped with a 24 VDC solenoid valve and a Pt 100 RTD to support accurate temperature monitoring and stable operation during production. When used with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GS35 delivers clean, stable adhesive flow system-wide. With a heat-up time of under 10 minutes, air-opened, spring-closed operation, and cycle speeds up to 3,500 cycles per minute, this single-module GS35 is well suited for constant bead applications in industrial packaging equipment where consistency and uptime are critical.

This model is part of the InvisiPac GS35 applicator series. View all available GS35 configurations here.

Constant Bead Dispensing Advantages of the Graco 24P073 GS35 Applicator

• Designed for Constant Bead Applications: Built specifically for continuous bead dispensing, making it well suited for consistent case and carton sealing where uniform adhesive flow is required.
• Air-Opened, Spring-Closed Operation: Uses air-opened, spring-closed actuation to deliver predictable bead control and reliable shutoff during high-speed production.
• Plug-Free InvisiPac™ Design: A free-flow adhesive path combined with integrated applicator and module filtering helps prevent nozzle plugging and reduce adhesive char, supporting longer run times and less maintenance.
• Electrical Components: Equipped with a 24 VDC solenoid valve and a Pt 100 RTD to provide responsive valve operation and accurate temperature monitoring during continuous operation.
• Fast Heat-Up Performance: Reaches operating temperature in under 10 minutes, allowing packaging lines to start quickly and minimize downtime after shutdowns.
• Single-Module Applicator Style: The single-module GS35 configuration integrates easily into packaging line equipment and manufacturing adhesive systems where a compact, dedicated bead applicator is needed.

Specifications

• Series: InvisiPac GS35
• Model: 24P073
• Type: Hot Melt Applicator
• Style: Single
• Number of Modules: 1
• Mode of Operation: Air Opened, Spring Closed
• Speed: > 3,500 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 24 VDC
• RTD Type: Pt 100 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 40 psi (0.3 MPa, 2.7 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down/Waterwash Applications: No
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
