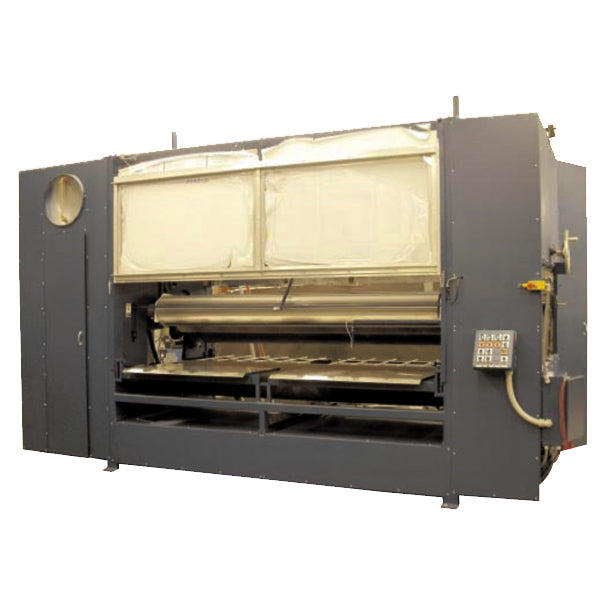

Large Format Hot Melt Roll Coater - Up to 110" Wide


Product Highlights

  • Dual Head for Top, Bottom or Dual Coating
  • Coats Up to 110" Wide Substrates
  • Works With Most Hot Melts, Waxes, Contact Adhesives
  • View All Hot Melt Roll Coaters

Large Format Hot Melt Roll Coaters for Sealing and Bonding Up to 110" Wide Substrates

This industrial, high volume hot melt roll coater can be configured to apply precise, even coatings of hot melt on substrates up to 110" wide. This large format hot melt roll coater is often used for panel manufacturing, product assembly, automotive applications and more. Every application is different and this machine can be customized to fit the very specific requirements of almost any roll coating application.

Try Before You Buy offers free testing to qualified customers on an in-house hot melt roll coater (up to 55"). We can test using your substrates and adhesives so you can see if this solution is a good fit for your application before putting in large amounts of time and money into R&D.

This is a custom build piece of equipment. Contact Us to discuss features, options or integration.


  • Dual head system
  • Easy change from single side coating to dual-side coating
  • Top or bottom coating

Customization, Training and Installation

This isn't an off-the-shelf product and we offer much more than off-the-shelf service. has a team of engineers who can review product needs, design specs, integration requirements and more. We also offer installation, maintenance and training services for all of our industrial hot melt roll coaters.

Common Adhesives for This Roll Coater

  • Pressure Sensitive Hot Melts
  • Contact Adhesives
  • Fugitive Hot Melt Adhesives
  • Specialty Waxes

Common Application

  • Wall panel lamination
  • Ceiling panel assembly
  • Floor panel assembly
  • Automotive panel assembly and coating
  • RV and Automotive panel, floor and wall coating


ROLL CONSTRUCTION: We construct our rolls so that we actually have a roll within a roll. The purpose of this is to recirculate the hot oil around the dummy roll, which is welded on the inside of the roll tube itself, instead of filling the entire roll with hot oil. This allows for more even heat and allows us to use a lower kilowatt heater.

HEATED ROLLS: Both doctor rolls and coating rolls are heated. Heating the coating rolls allows us to maintain a more controlled temperature and compensate for the heat loss which naturally occurs while coating various substrates. Heat loss on the coating roll will cause a variation in coating weights and force the user to apply heavier amounts of hot melt adhesive.

BEARINGS: All bearings are mounted on the outside of the slide plate which eliminates any contamination of the various coating materials to the bearings themselves. All bearings are filled with high temperature grease.

SILICONE COVERED COATING ROLL: When coating surfaces which are uniform and flat, we are able to utilize a steel coating roll and a steel doctor roll. Where a soft coating roll is required to conform to the substrate surface, a silicone-covered coating roll is utilized in order to withstand the heat and provide the desired release characteristics.

SEAL PLATES: All seal plates are spring-loaded in order to compensate for the roll expansion which naturally occurs when the rolls are heated.

HOT OIL HEATER: The location of the hot oil heater can either be underneath the coating area or mounted vertically to either side of the coater. This coater requires no water cool-down for the hot oil pump itself. Both the hot oil heater and the hot oil pump are specifically designed for hot oil applications.

CONTROL CABINET: A control cabinet is furnished with each system and can be completely separate from the coater or attached to the coater on a hinged mounting in order to provide access to the coater. interlocking of the

hot oil pump and oil heater requires that the hot oil pump be on in order to activate the hot oil heater. A digital temperature controller maintains temperature while a second thermostat provides for a safety and automatic kick-out.

RELEASE COATING: A special release coating is sprayed over the painted surfaces within the coating area. This release coating provides a non-stick surface which in turn makes clean-up and maintenance simple and effective.

PLUMBING: All plumbing within the unit is insulated. All rolls and components are equipped with shut-off valves so that maintenance can be performed at individual components.

TESTlNG AND SERVICE: We maintain a 54" hot melt coater on the floor for testing at all times. This allows all potential customers to test production size panels using their own materials and provides for first hand knowledge of the various coating materials and the roller coater. This is done at no charge or obligation.
