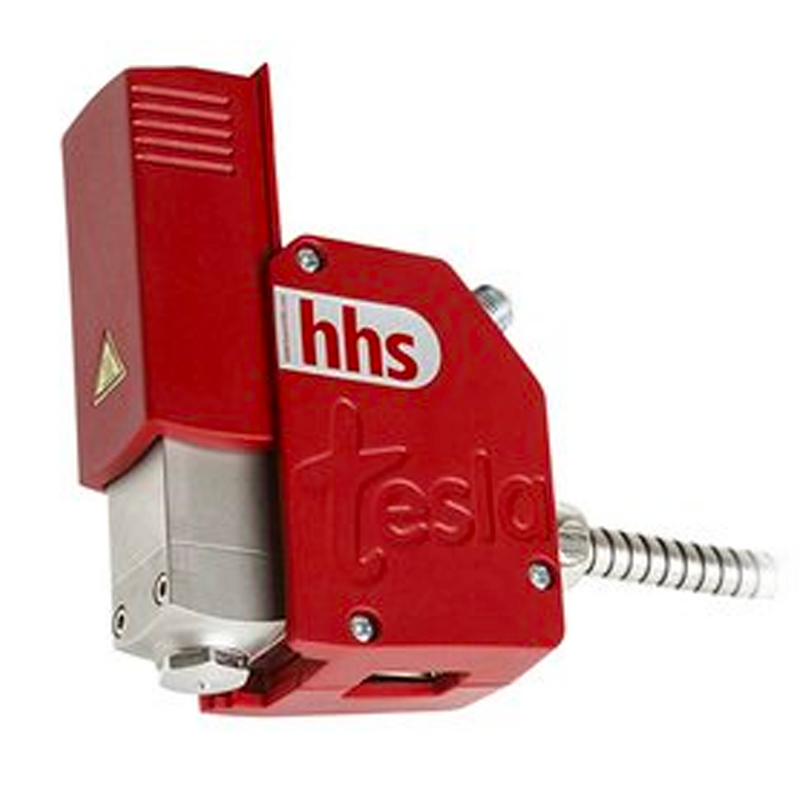

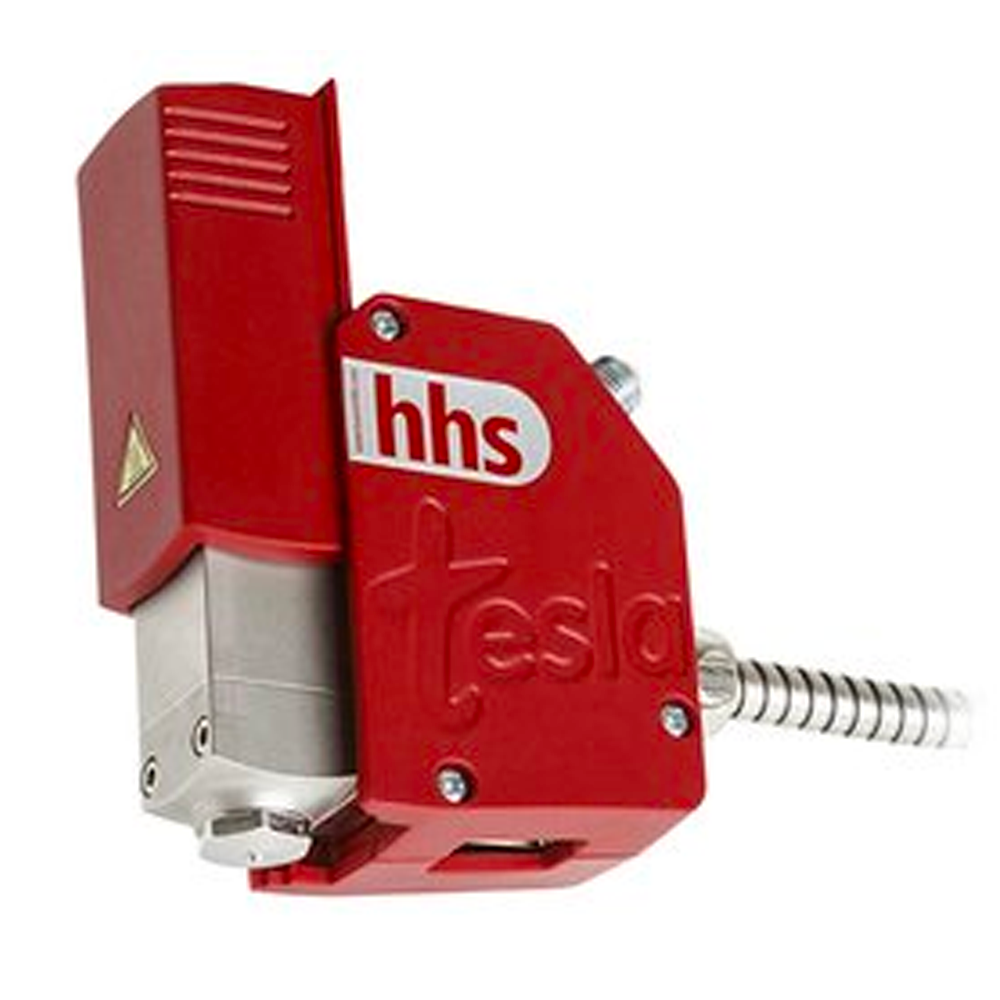

hhs Baumer Tesla Pro Electric Hot Melt Applicator

hhs Baumer Tesla Pro Electric Applicator Overview

The Tesla Pro hot melt applicator features an electromagnetic application head for hot melt dispensing. The use of the Tesla pro leads to a significant reduction in products costs due to eliminating compressed air and the very long service life - up to 1 billion switching operations! Controlled by the hhs Baumer Controller, the tesla pro permits extremely fast switching cycles of 600 Hz.

Features and Benefits

• Electromagnetic hot melt application head for glue beads and dots
• Application frequency: 600 Hz
• 10 times longer service life, compared to electropneumatic hot melt application heads
• Reduction of operating noise by 30 dB - compared to electropneumatic hot melt application heads - to 65 dB
• Cost savings through the elimination of the compressed-air supply
• For use with Xmelt hotmelt systems with Xpect / VE04 Controller
• Max. pressure 80 bar
• Integrated overtemperature cut-out
• Plug-in module
• Thermal insulation
• The nozzle is opened electrically and closed by spring Action
• Dot application even at the highest machine speeds
• Excellent cut-off characteristics, even during high-speed, intermittent gluing
• Compact design
• Suitable for adhesives with viscosities up to 5,000 mPa.s
• Glue saving due to dot application

Tesla Applicator Variations

hhs Baumer Tesla Go

• electric applicator that connects to non-hhs hot melt hoses & tank utilizing a 120 ohm RTD sensor

• rated at a billion cycle life
• has a 7ms cycle time (open and close)

hhs Baumer Tesla EVO

• electric applicator that connects to the hhs hot melt hoses & tank utilizing a PT100 RTD sensor
• rated at a billion cycle life
• has a 7ms cycle time (open and close)

hhs Baumer Tesla Pro

• electric applicator that connects to hhs hot melt hoses and tanks utilizing a PT100 RTD sensor
• rated at a billion cycle life
• has a 2ms cycle time (open and close)
