Graco 130702 Four Orifice Mini Button Hot Melt Nozzle, 0.016 in Orifice, 60° Pattern

SKU: GRACO 130702

Manufacturer Part #: 130702

UPC: 00755652639084

7 product options available.

Type: Hot Melt Nozzle
Brand: Graco
Description: 4 Orifice Mini Button Nozzle, 0.016" Orifice, 60° Pattern
Nozzle Type: 4 Orifice, Button
Nozzle Angle: 60 Degree
Orifice Size: .016"

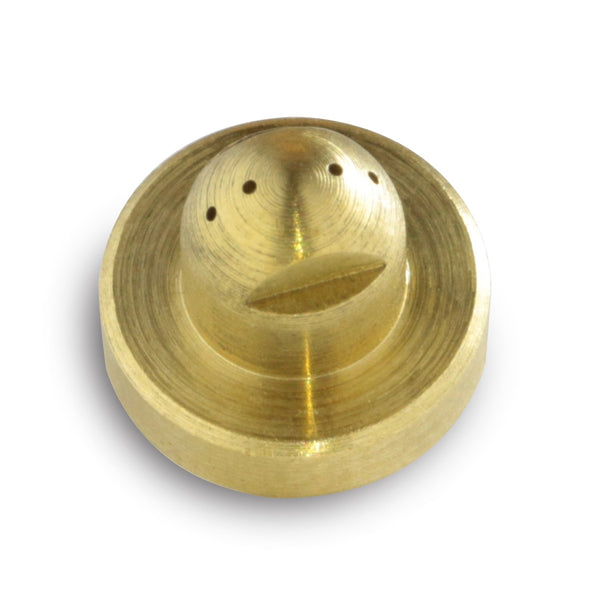

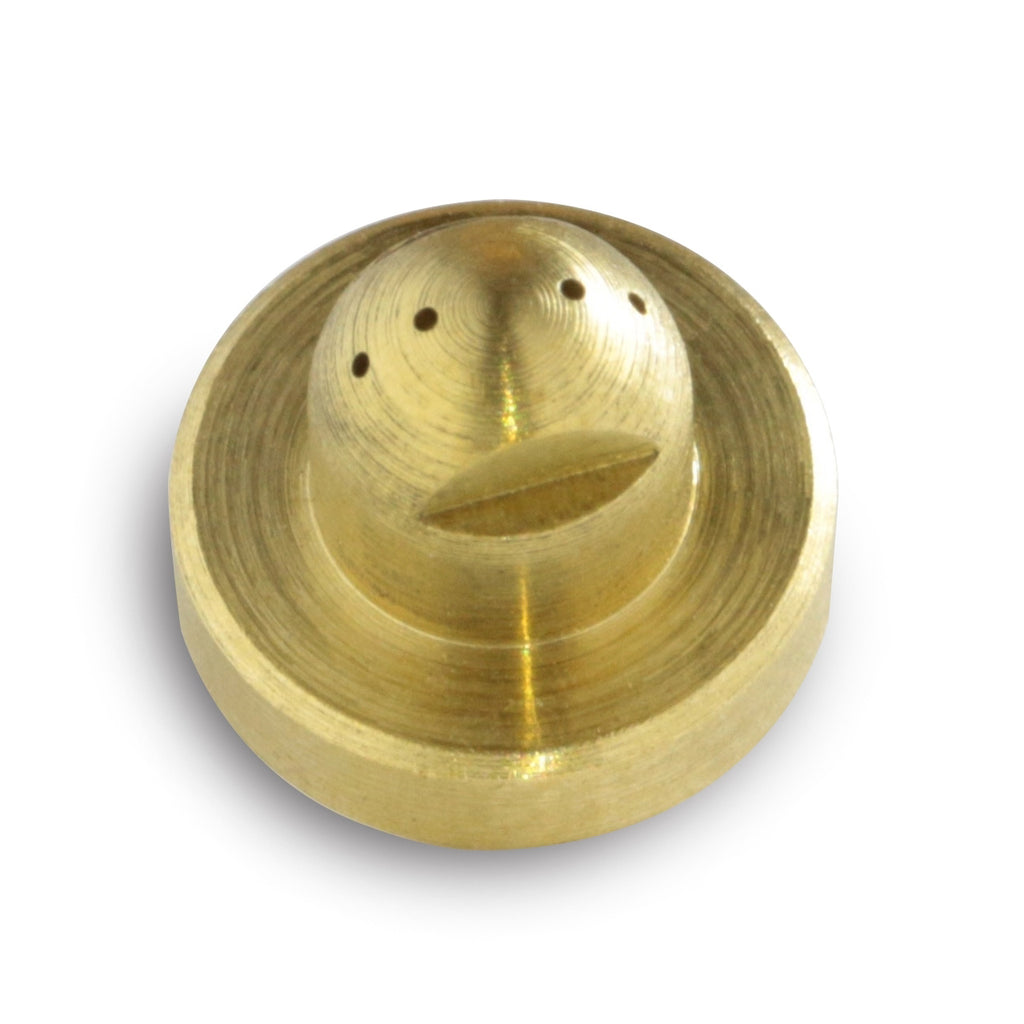

InvisiPac™ 130702 Four Orifice Mini Button Hot Melt Nozzle from Graco

The Graco 130702 is a four-orifice mini button hot melt nozzle used for multi-line adhesive application in packaging operations. This replacement nozzle features four 0.016 in orifices with a 60° dispense angle and is designed for use with Graco InvisiPac™ dispensing equipment.

Benefits of Graco 130702 Hot Melt Nozzle

Four-Orifice Mini Button Layout: Mini button nozzle body configured with four adhesive outlets.
Orifice Diameter: Four 0.016 in diameter openings for hot melt adhesive.
60° Dispense Angle: Outlet arrangement applies adhesive at a 60° angle.
InvisiPac™ Compatibility: Designed for use with Graco InvisiPac™ applicators.

Technical Specifications

Manufacturer: Graco
Manufacturer Part Number: 130702
Product Type: Hot Melt Nozzle
Nozzle Style: Mini Button
Orifice Count: 4
Orifice Diameter: 0.016 in
Dispense Pattern: 60°
Offset: No
Compatible Equipment: Graco InvisiPac™ Applicators
Application: Case and Carton Sealing, Packaging Adhesive Dispensing
Note: Requires Retaining Nut PN 131900

All Graco InvisiPac™ Mini Button hot melt nozzles require the Graco 131900 retaining nut for proper installation. Sold separately.

Hotmelt.com is powered by APPLIED Adhesives, your single source for adhesives, dispensing equipment, and expert service. We provide everything you need to keep your operations running smoothly.

Our end-to-end solutions help you save time, reduce costs, and improve efficiency. Whether you need hot melt adhesives, equipment repair, or reliable replacement parts, we have you covered.

Questions about Graco 130702 Nozzle? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

View all Graco 4-Orifice Mini Button Nozzles

Graco Part #	DESCRIPTION
GRACO 130703	4 Orifice Mini Button Nozzle, 0.010" Orifice, 90° Pattern
GRACO 130704	4 Orifice Mini Button Nozzle, 0.012" Orifice, 90° Pattern
GRACO 130705	4 Orifice Mini Button Nozzle, 0.014" Orifice, 90° Pattern
GRACO 130702	4 Orifice Mini Button Nozzle, 0.016" Orifice, 60° Pattern
GRACO 130706	4 Orifice Mini Button Nozzle, 0.016" Orifice, 90° Pattern
GRACO 130700	4 Orifice Mini Button Nozzle, 0.020" Orifice, 90° Pattern
GRACO 130701	4 Orifice Mini Button Nozzle, 0.030" Orifice, 90° Pattern

Hotmelt.com is an authorized solutions provider of Graco hot melt equipment. We offer the complete line of Graco systems, and our expert technicians can help spec, install, and maintain your Graco equipment, including Graco InvisiPac and Graco Therm-O-Flow.
