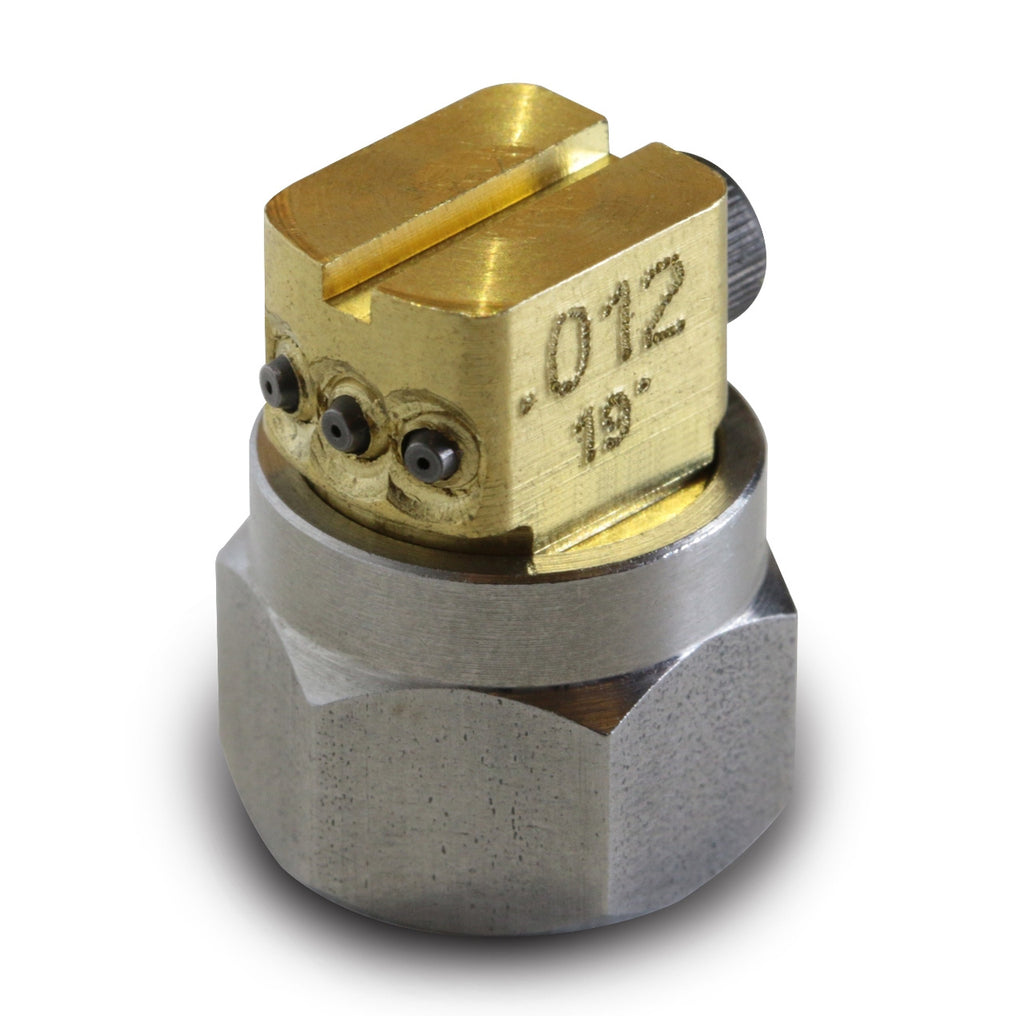

Graco 130305 Three Orifice Right Angle Hot Melt Nozzle, 0.012 in Orifice, 22.5° Pattern

SKU: GRACO 130305

Manufacturer Part #: 130305

UPC: 00755652637844

8 product options available.

Type: Hot Melt Nozzle
Brand: Graco
Description: 3 Orifice Right Angle Nozzle, 0.012" Orifice, 22.5° Pattern
Nozzle Type: 3 Orifice, Right Angle
Nozzle Angle: 90 Degree / 22.5 Degree Spread
Orifice Size: .012"

Overview of InvisiPac™ 130305 Three Orifice Right Angle Hot Melt Nozzle

Used in case and carton sealing operations, the Graco 130305 is a three-orifice right angle hot melt nozzle for packaging adhesive application. This replacement nozzle includes three 0.012 in orifices with a 22.5° dispense angle and is designed for use with Graco InvisiPac™ applicators.

Design Features of Graco 130305 InvisiPac™ Nozzles

Orifice Diameter: Includes 0.012 in adhesive outlets.
Dispense Angle: Adhesive is dispensed in a 22.5-degree angled pattern.
Three-Outlet Layout: Nozzle constructed with three adhesive outlets.
Nozzle Body Orientation: Right angle nozzle design for 90-degree mounting.

Specifications

Manufacturer: Graco
Manufacturer Part Number: 130305
Product Type: Hot Melt Nozzle
Nozzle Style: Right Angle
Orifice Count: 3
Orifice Diameter: 0.012 in
Dispense Pattern: 22.5°
Compatible Equipment: Graco InvisiPac™ Applicators
Application: Case and Carton Sealing, Packaging Adhesive Dispensing

Hotmelt.com is powered by APPLIED Adhesives, your single source for adhesives, dispensing equipment, and expert service. We provide everything you need to keep your operations running smoothly.

Our end-to-end solutions help you save time, reduce costs, and improve efficiency. Whether you need hot melt adhesives, equipment repair, or reliable replacement parts, we have you covered.

Questions about Graco 130305 Nozzle? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

View all Graco 3-Orifice Right-Angle Nozzles

Graco Part #	DESCRIPTION
GRACO 130301	3 Orifice Right Angle Nozzle, 0.012" Orifice, 19° Pattern
GRACO 130302	3 Orifice Right Angle Nozzle, 0.014" Orifice, 19° Pattern
GRACO 130303	3 Orifice Right Angle Nozzle, 0.016" Orifice, 19° Pattern
GRACO 130304	3 Orifice Right Angle Nozzle, 0.020" Orifice, 19° Pattern
GRACO 130305	3 Orifice Right Angle Nozzle, 0.012" Orifice, 22.5° Pattern
GRACO 130308	3 Orifice Right Angle Nozzle, 0.014" Orifice, 22.5° Pattern
GRACO 130306	3 Orifice Right Angle Nozzle, 0.016" Orifice, 22.5° Pattern
GRACO 130307	3 Orifice Right Angle Nozzle, 0.020" Orifice, 22.5° Pattern
