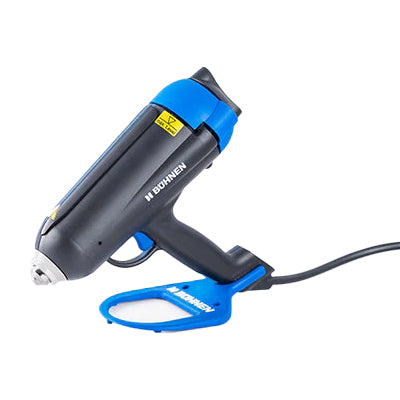

Buehnen HB 450 Spray Bulk Hot Melt Glue Gun – Pneumatic Industrial Applicator

Pneumatic Bulk Hot Melt Spray Applicator for Industrial Use

The Buehnen HB 450 Spray is a pneumatic bulk hot melt glue gun designed for controlled spray application in industrial environments. Operating at a fixed temperature of 376°F (190°C), it provides consistent adhesive output without the need for adjustment.

This applicator is compatible with a wide range of hot melt adhesives—including EVA, polyolefins, and pressure sensitive adhesives (PSA)—and supports pellets (granules), pillows, and 43 mm glue slugs. The integrated pneumatic assist helps reduce trigger effort, improving comfort and control during extended use.

Note: Requires an external air regulator (not included).

Key Features of Buehnen HB 450 Spray Hot Melt Glue Gun

• Pneumatic Assist Operation: Reduces trigger force for smoother spray control and less operator fatigue

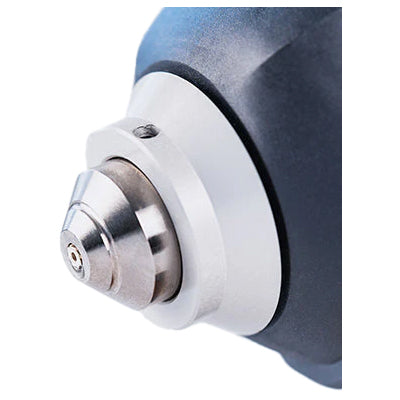

• Swirl Spray Nozzle: Produces a consistent 1.5 mm (0.06 in) spray pattern for even adhesive distribution
• Bulk Adhesive Capability: Accepts pellets (granules), 43 mm glue slugs, and pillows for flexible material handling
• Multi-Adhesive Compatibility: Works with EVA, polyolefins, and pressure sensitive adhesives (PSA)
• Fixed Temperature System: Operates at 376°F (190°C) for steady, reliable adhesive output without adjustment
• Ergonomic Construction: Designed for balance and comfort during extended industrial use
• Quick Heat-Up Time: Reaches operating temperature in approximately 10 minutes to reduce downtime

Specifications

• Model: HB 450 Spray
• Type: Bulk Hot Melt Glue Gun
• Compatible Adhesives: EVA, Polyolefins, Pressure Sensitive Adhesives (PSA)
• Adhesive Form: 43 mm Slugs, Pellets (Granules), Pillows

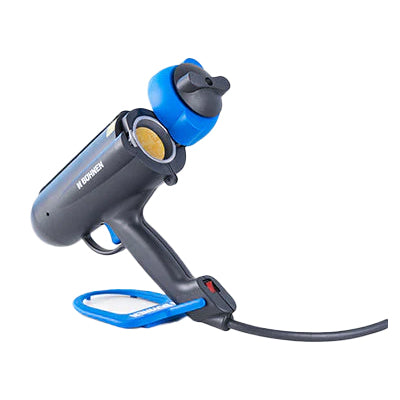

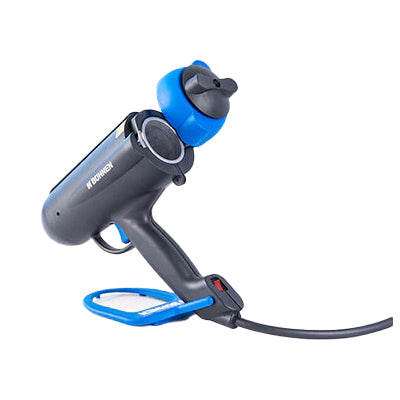

• Melt Chamber Capacity: 6.7 oz (200 ml)
• Warm-Up Time: ~10 Minutes
• Output Capacity:
  • Slugs: Up to 7 lbs/hr (3.2 kg/hr)
  • Granules: Up to 2.9 lbs/hr (1.3 kg/hr)
• Nozzle: Swirl Spray Nozzle Ø 1.5 mm (0.06 in)
• Operating Temperature: 376°F (190°C) – Fixed
• Temperature Stability: ±45°F (±25°C)
• Operating Pressure: 21.7 – 87.0 psi (1.5 – 6.0 bar)
• Power Supply: 115V AC / 60 Hz
• Power Requirement: 600W
• Power Consumption: 2.6 A
• Cord Length: 9.8 ft (3 m)
• Weight: 3.20 lbs (1.45 kg)

Common Applications

• Spray adhesive application for large surface bonding
• Packaging and carton sealing with spray coverage
• Foam, fabric, and textile lamination
• Product assembly requiring even adhesive distribution
• Wood paneling and surface bonding applications
• General industrial spray adhesive use
