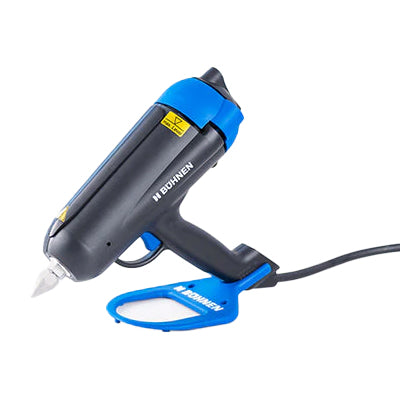

Buehnen HB 450 Bead Bulk Hot Melt Glue Gun – Pneumatic Industrial Applicator

Pneumatic Bulk Hot Melt Glue Gun for Bead Application

Built for industrial bead dispensing, the Buehnen HB 450 Bead combines pneumatic power with bulk adhesive flexibility for efficient manual application. Its fixed temperature design operates at 376°F (190°C), providing consistent performance without the need for adjustment or operator input.

The HB 450 Bead is compatible with a wide range of hot melt chemistries, including EVA, polyolefins, and pressure sensitive adhesives (PSA), and accepts pellets (granules), pillows, and 43 mm slugs. A pneumatic assist system helps reduce hand fatigue, allowing for smoother, more controlled dispensing during repetitive tasks.

Note: Requires an external air regulator (not included).

Buehnen HB 450 Bead Hot Melt Applicator Key Advantages

• Bulk Adhesive Flexibility: Processes pellets (granules), pillows, and 43 mm slugs for a wide range of applications
• Pneumatic Assist System: Minimizes trigger force for smoother operation and reduced hand fatigue
• Fixed Temperature Performance: Operates at 376°F (190°C) to maintain consistent adhesive output without adjustment
• Adhesive Versatility: Compatible with EVA, polyolefins, and pressure sensitive adhesives (PSA)
• Ergonomic Handling: Designed with balanced weight distribution for improved control during extended use
• Quick Start-Up: Heats up in approximately 10 minutes to keep workflows moving

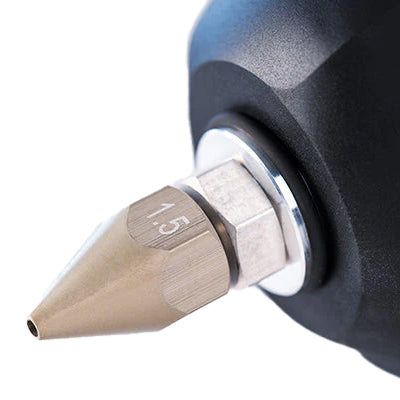

• Precision Dispensing Nozzle: Equipped with a 1.5 mm (0.06 in) cone nozzle for accurate bead application

Technical Specifications

• Model: HB 450 Bead
• Type: Bulk Hot Melt Glue Gun - Bead Extrusion
• Compatible Adhesives: EVA, Polyolefins, Pressure Sensitive Adhesives (PSA)
• Adhesive Form: 43 mm Glue Slugs, Granules (Pellets), Pillows
• Melt Chamber Capacity: 6.7 oz (200 ml)
• Warm-Up Time: ~10 Minutes
• Output Capacity:
  • Slugs: Up to 7 lbs/hr (3.2 kg/hr)
  • Granules: Up to 2.9 lbs/hr (1.3 kg/hr)
• Nozzle: Cone Nozzle Ø 1.5 mm (0.06 in)
• Operating Temperature: 376°F (190°C) – Fixed
• Temperature Stability: ±45°F (±25°C)
• Operating Pressure: 21.7 – 87.0 psi (1.5 – 6.0 bar)
• Power Supply: 115V AC / 60 Hz
• Power Requirement: 600W
• Power Consumption: 2.6 A
• Cord Length: 9.8 ft (3 m)
• Weight: 2.75 lbs (1.35 kg)

Applications

• Carton and case sealing operations
• End-of-line packaging processes
• Product and component assembly
• Woodworking and furniture manufacturing
• Foam, fabric, and textile bonding
• General-purpose industrial adhesive applications
