Bostik PES 3320 Low Temp Technical Lamination Copolyester Hot Melt

SKU: BOSTIK PES 3320 PEL

Manufacturer Part #: PES 3320


Product Highlights

Bostik PES 3320 Copolyester Hot Melt Glue for Low-Temperature Technical Laminations

Bostik PES 3320 is a moderately low melting thermoplastic copolyester adhesive designed for technical fabric laminations and composite bonding. It forms strong bonds to a wide variety of substrates including textiles, fiberboard, metal, PVC, and PU foam. Supplied in both powder and pellet form, PES 3320 is well-suited for applications requiring flexible adhesion at lower processing temperatures.

Benefits of Bostik PES 3320 Technical Lamination Glue

  • Low-Temperature Fusing: Activates at glue-line temperatures between 239–284°F (115–140°C), ideal for heat-sensitive laminations.
  • Good Adhesion to Multiple Substrates: Bonds well to PU foam, PVC, glass fiber, fiberboard, and metal.
  • Moderate Flow Behavior: Melt viscosity of 500,000 cps allows controlled coating and spreading during lamination.
  • Flexible Mechanical Properties: Shore D56 hardness supports use in composite and technical fabric systems.
  • Available in Versatile Formats: Offered in powder and pellet forms, with particle sizes for paste dot, powder dot, or scatter coating.

Specifications

  • Model: PES 3320
  • Chemistry: Thermoplastic Copolyester Adhesive

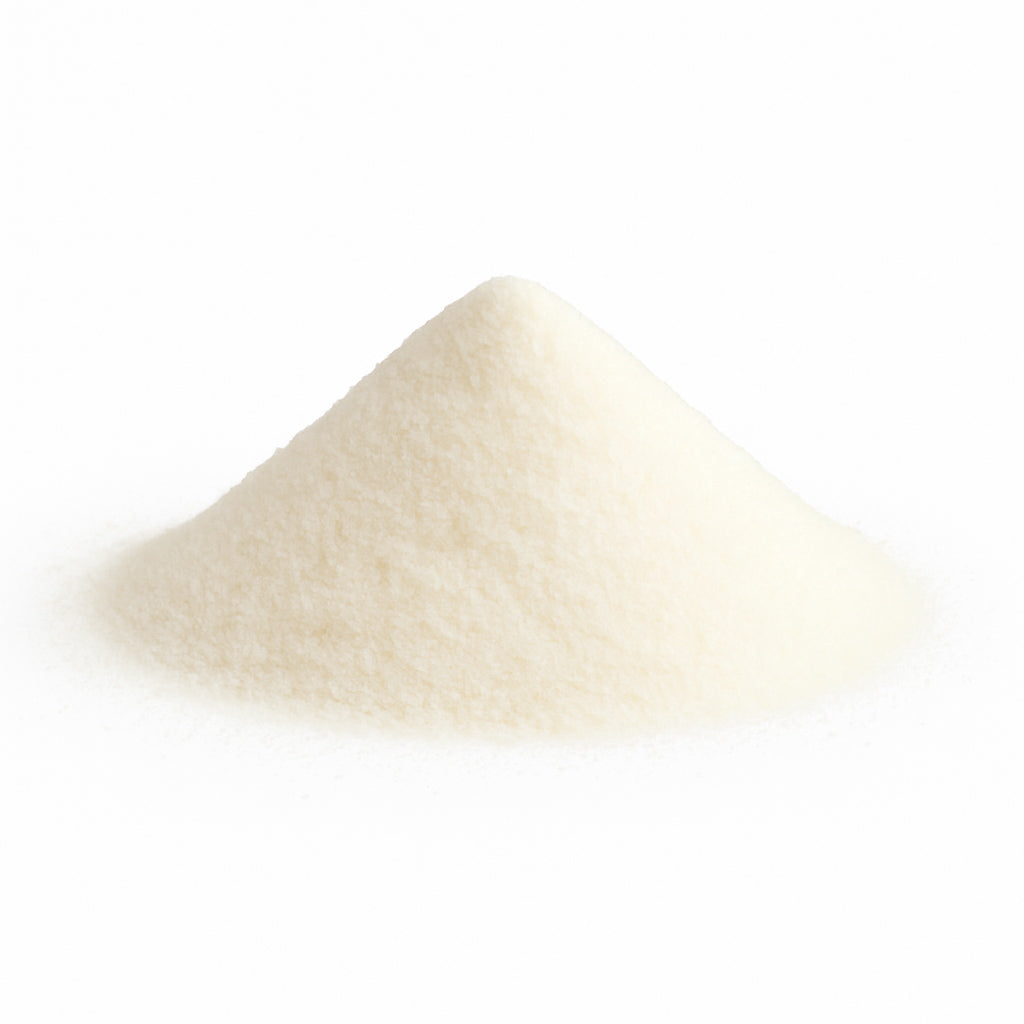

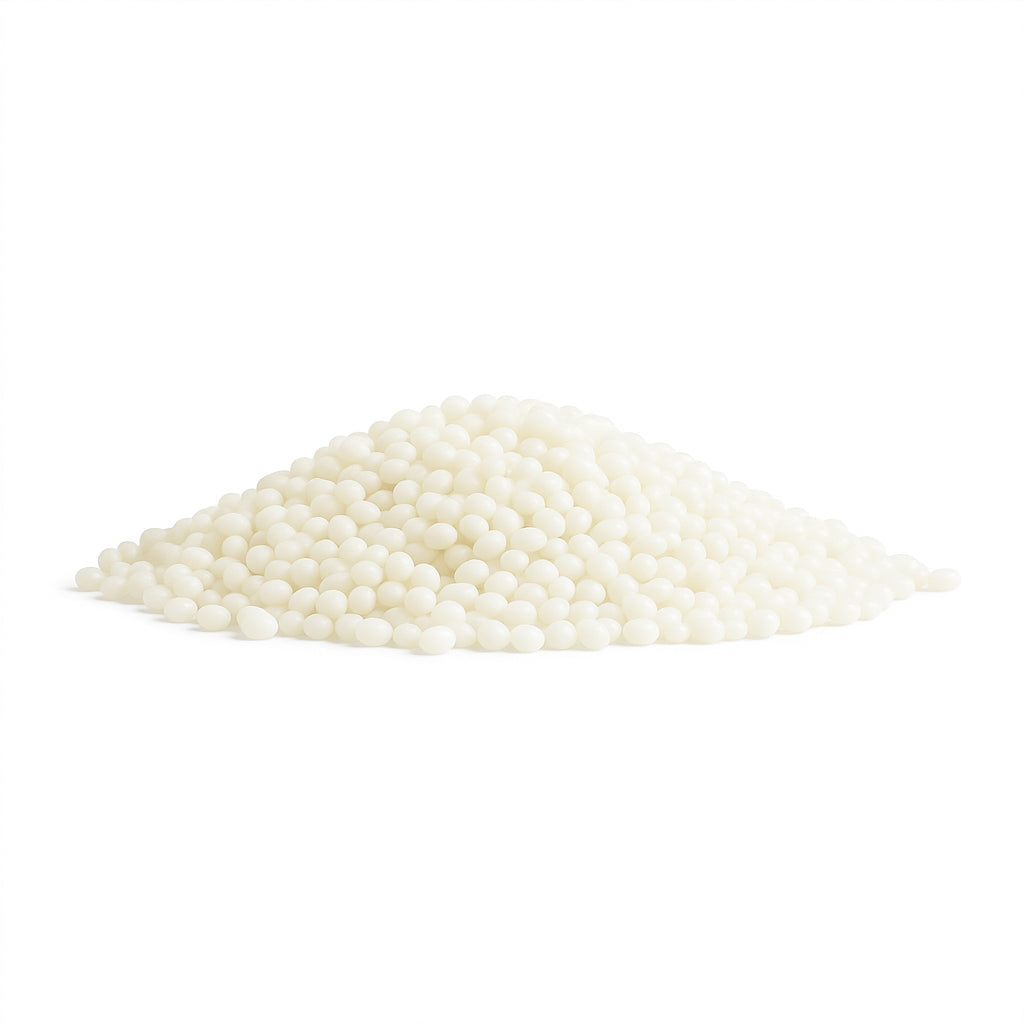

  • Appearance: White Powder or Pellets
  • Compatible Substrates: Textiles, fiberboard, metal, PVC, PU foam
  • Common Applications: Technical laminations, composite bonding
  • Melting Point (DSC): 207–225°F (97–107°C)
  • Glass Transition Temperature (Tg): 63°F (17°C)
  • Melt Flow Rate: 25 g/10 min @ 320°F (160°C)
  • Melt Viscosity: 500,000 cps @ 320°F (160°C)
  • Hardness: Shore D56
  • Density: 1.29 g/cm³
  • Fusing Temperature (Glue-Line Temp): 239–284°F (115–140°C)
  • Fusing Pressure: 3–5 N/cm²
  • Fusing Time: 10–15 seconds
  • Washing Resistance: Up to 122°F (50°C)
  • Heat Resistance: Up to 158°F (70°C)
  • Dry Cleaning Resistance: Fair
  • Storage and Handling: Store in a dry environment below 86°F (30°C)
  • Shelf Life: Up to 2 years in original sealed packaging
  • Available Particle Sizes:
    • Paste Dot: 0–80 µm
    • Powder Dot: 80–200 µm
    • Scatter Coating: 100–500 µm

Submit the form below to get the Technical Data Sheet (TDS) or Safety Data Sheet (SDS) for Bostik PES 3320 sent to your email address.

Questions about Bostik PES 3320? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Authorized Distributor

Hotmelt.com is an authorized distributor of Bostik adhesives.
