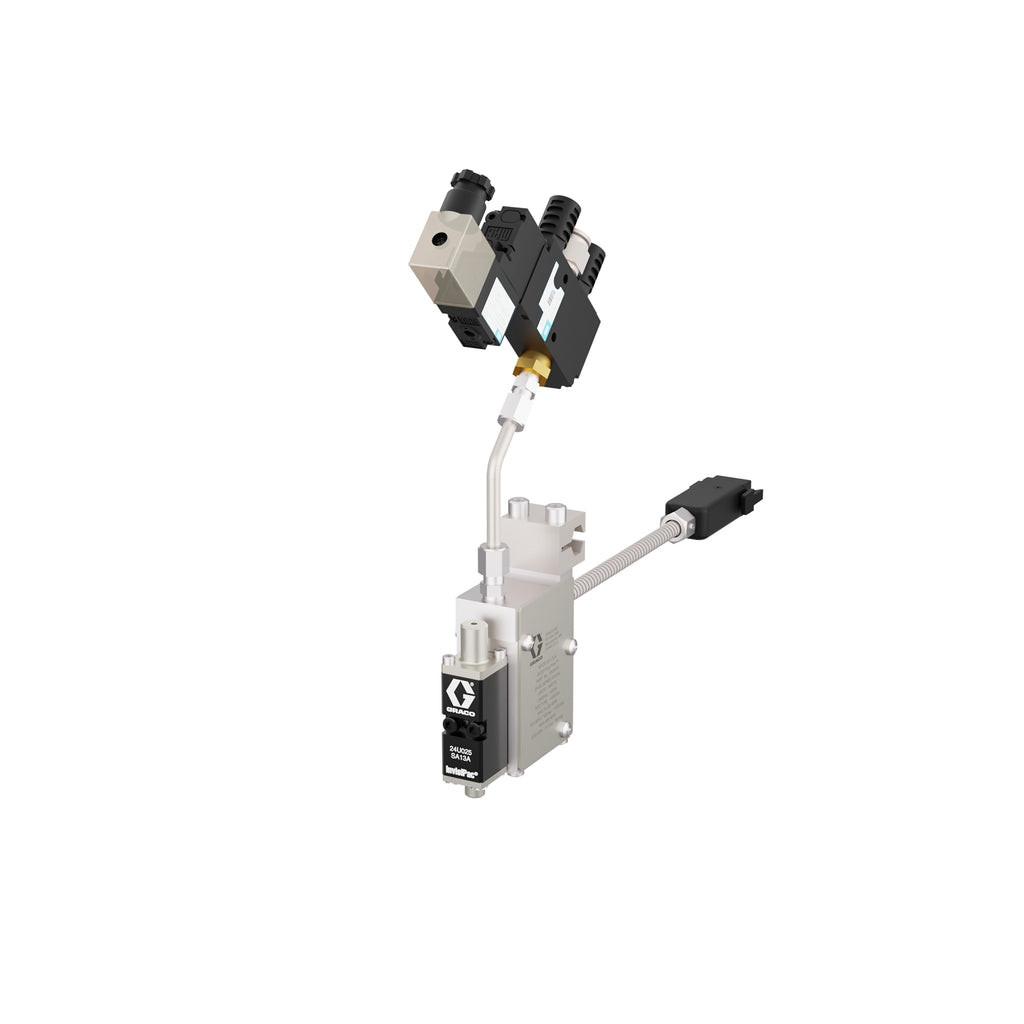

Graco 24U025 InvisiPac GS35 Single Slim Hot Melt Applicator with 110 VAC Solenoid and Ni 120 RTD

InvisiPac GS35 Single Slim Hot Melt Applicator for Glue Melter Systems

Graco 24U025 InvisiPac GS35 Single Slim Hot Melt Applicator is built for constant bead adhesive dispensing in space-constrained case and carton sealing equipment. Its plug-free design helps prevent nozzle plugging and reduce adhesive char, supporting stable bead formation and improved uptime in continuous packaging operations. The slim single-module profile allows the applicator to fit easily into compact machine layouts without sacrificing dispensing performance.

This GS35 model features an 110 VAC solenoid valve for dependable actuation and a Ni 120 RTD to provide accurate temperature feedback during operation. With a fast heat-up time of under 10 minutes and operating speeds up to 3,500 cycles per minute, it functions as a reliable hot melt dispenser and dispense valve for industrial packaging lines. At the system level, the applicator is designed for use with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, supporting clean adhesive delivery across the dispensing system.

See additional Graco InvisiPac GS35 applicator configurations.

Case and Carton Sealing Advantages of the Graco 24U025 Applicator

• Slim Form Factor for Tight Installations: The single slim applicator body fits easily into compact packaging equipment where mounting space is limited.
• Reduced Char and Cleaner Adhesive Path: A free-flow manifold and built-in filtration help limit adhesive char and debris buildup, lowering maintenance demands over time.
• Fast Warm-Up to Minimize Downtime: Heats to operating temperature in under 10 minutes, allowing quicker startups and faster recovery after line stoppages.
• Dependable Pneumatic Shutoff: Air-opened, spring-closed operation delivers predictable valve response and clean bead cutoff at cycle speeds up to 3,500 cycles per minute.
• 110 VAC Electrical Configuration with Feedback Control: Uses an 110 VAC solenoid valve paired with a Ni 120 RTD to support stable operation and accurate temperature monitoring.
• Optimized for InvisiPac Systems: Designed to work seamlessly with Graco InvisiPac Tank-Free Hot Melt Delivery Systems, helping maintain clean adhesive flow across the entire system.

Model Specifications

• Series: InvisiPac GS35
• Model: 24U025
• Type: Hot Melt Applicator
• Style: Slim - Single
• Number of Modules: 1
• Mode of Operation: Air Opened, Spring Closed
• Speed: > 3,500 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 110 VAC
• RTD Type: Ni 120 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 40 psi (0.3 MPa, 2.7 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down/Waterwash Applications: No
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
