Graco 24P080 InvisiPac GS35 Quad Hot Melt Applicator with 110 VAC Solenoid and Pt 100 RTD - II Module Spacing

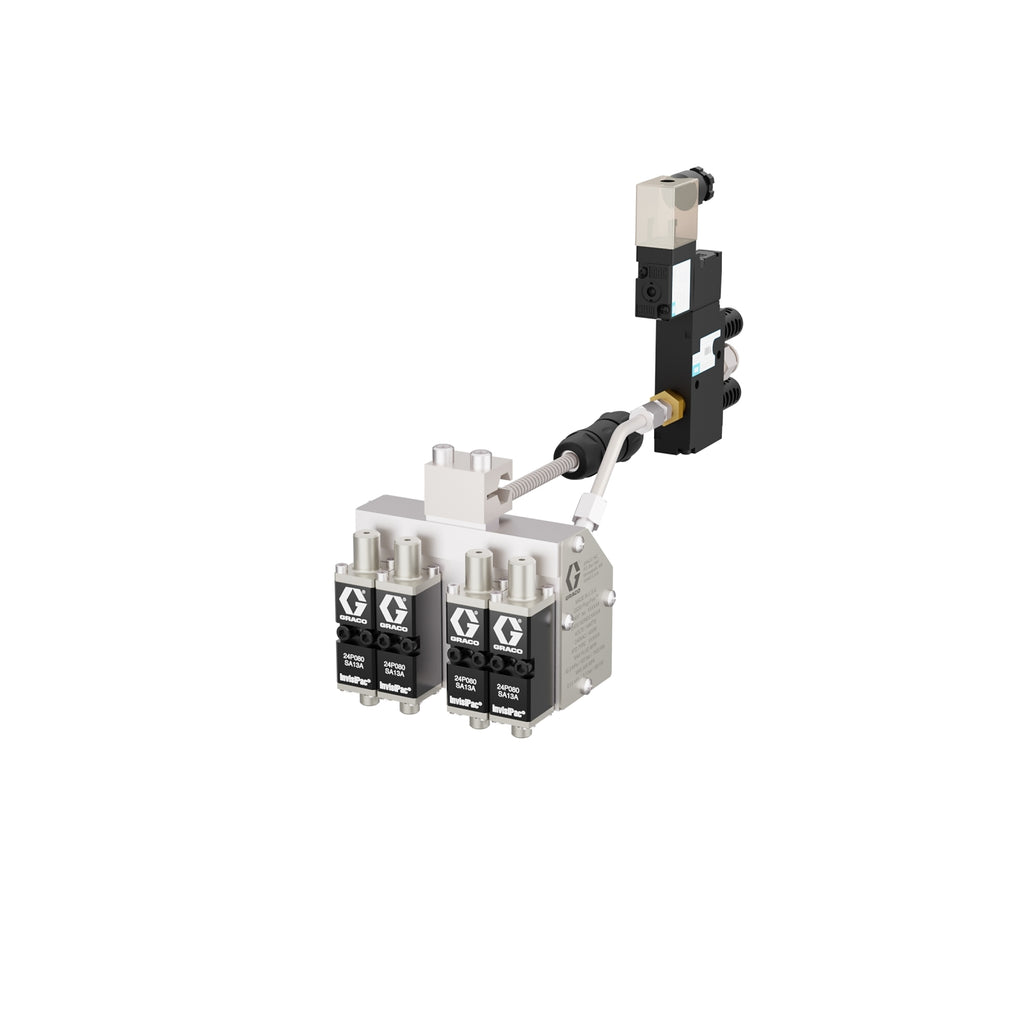

GS35 InvisiPac 24P080 Quad Hot Melt Applicator for Case and Carton Sealing

Built for high-speed, four-point constant bead adhesive dispensing, the Graco 24P080 InvisiPac GS35 quad hot melt applicator delivers consistent adhesive output across multiple dispense locations in demanding case and carton sealing operations. The quad-module configuration with II-style spacing supports wider application layouts, making it well suited for larger cartons and packaging lines that require precise bead placement across broader formats. Its plug-free adhesive path helps reduce nozzle plugging and adhesive char, supporting cleaner operation and improved uptime in continuous industrial packaging environments.

Designed for use with the Graco InvisiPac Tank-Free Hot Melt Delivery System, including HM10, HM25c, and HM50 models, the GS35 enables clean, stable adhesive delivery throughout the dispensing system. This configuration is equipped with a 110 VAC solenoid valve for dependable electrical actuation and a Pt 100 RTD for accurate temperature monitoring during operation. Reaching operating temperature in under 10 minutes and operating in an air-opened, spring-closed mode at cycle speeds exceeding 3,500 cycles per minute, the 24P080 functions as a reliable adhesive dispenser and dispense valve solution for manufacturing adhesive systems, packaging automation, and high-speed carton sealing applications.

See additional Graco InvisiPac GS35 applicator configurations.

Application Advantages of the Graco 24P080 GS35 Quad Design

• Accurate Control and Temperature Feedback: Equipped with a 110 VAC solenoid valve for reliable actuation and a Pt 100 RTD to provide precise temperature monitoring during operation.
• Quad-Module Adhesive Application: Four applicator modules provide consistent, simultaneous bead placement across multiple dispense points, supporting high-throughput case and carton sealing operations.
• Extended II Module Spacing: Wider spacing between modules accommodates larger cartons and broader sealing patterns, enabling accurate adhesive placement across wide-format packaging layouts.
• High-Speed Constant Bead Performance: Designed for continuous operation at speeds exceeding 3,500 cycles per minute, supporting stable bead formation in demanding production environments.
• Plug-Free Free-Flow Adhesive Path: Eliminates dead zones where adhesive can stagnate, reducing nozzle plugging and adhesive char while maintaining uninterrupted flow.
• Dual-Stage Filtration for Cleaner Operation: Heated-zone manifold filtration and internal module filters capture debris and char before reaching critical components, helping minimize maintenance and downtime.

Applicator Specifications

• Series: InvisiPac GS35
• Model: 24P080
• Type: Hot Melt Applicator
• Style: Quad
• Number of Modules: 4
• Module Spacing: II - contact us for dimensions
• Mode of Operation: Air Opened, Spring Closed
• Speed: > 3,500 cycles/minute
• Heat-up Time: 10 minutes to 350°F (176°C) at 240 VAC
• Heater: 240 V
• Solenoid Valve Voltage Rating: 110 VAC
• RTD Type: Pt 100 RTD
• Maximum Working Fluid Pressure: 1,500 psi (10.3 MPa, 103 bar)
• Minimum Working Air Pressure: 40 psi (0.3 MPa, 2.7 bar)
• Maximum Working Air Pressure: 80 psi (0.50 MPa, 5.5 bar)
• Suitable for Wash Down/Waterwash Applications: No
• Approvals and Standards: UL 499 Listed, CSA88, CE, ISO 9001
