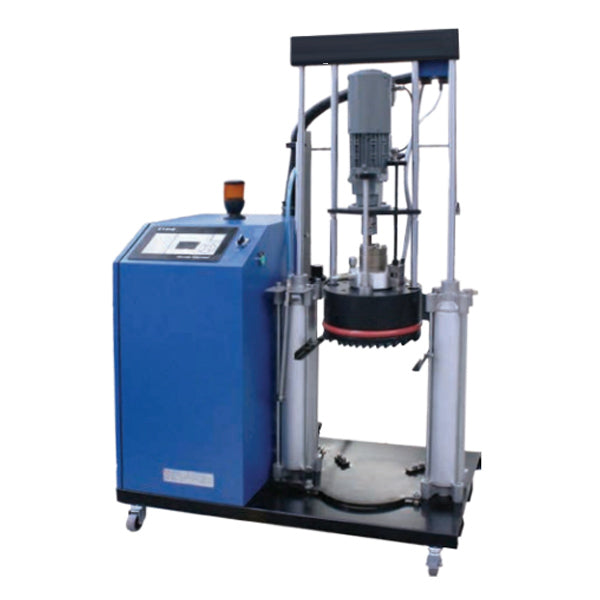

Meler Micron+ Drum 20 Hot Melt Pail Unloader – 5 Gallon

Compact Hot Melt Pail Unloader for Low-Volume, Precision Applications

The Meler Micron+ Drum 20 is a compact hot melt pail unloader designed for processing 5 gallon (20 liter) pails in low-volume, precision-controlled applications. Engineered for use with a range of hot melt adhesives including PSA, EVA, and polyolefin (PO), it delivers consistent adhesive flow while reducing material waste and maintaining stable adhesive properties. Sequential zone heating and a thermally balanced melting plate maintain uniform temperature across the adhesive surface, ensuring stable viscosity and controlled output.

Integrated controls with real-time monitoring allow precise adjustment of temperature and pump performance, while flexible pump configurations support a wide range of application requirements. Its compact footprint makes it ideal for intermittent production, specialty adhesives, and operations where a full-size system would be oversized.

For higher throughput and continuous production environments, see the Micron+ Drum 200 hot melt drum unloader.

Key Advantages of the Micron+ Drum 20 — 5 Gallon Hot Melt Pail Unloader

• Sequential Zone Heating System: Heats adhesive progressively through controlled zones to maintain stable temperature, reducing thermal degradation and ensuring consistent application performance.
• Thermally Balanced Melting Plate: Maintains uniform heat distribution across the adhesive surface to support stable viscosity and controlled, repeatable output.
• Configurable Pump Output: Supports multiple pump sizes with single or double pump configurations to match application-specific flow rates and dispensing requirements.
• Integrated Control System with Real-Time Monitoring: Displays temperature, pump speed, and system status, allowing precise adjustment and consistent process control during operation.
• Flexible Melting Plate Options: Available with smooth or radial fin discs to optimize melt rate based on adhesive type and throughput requirements.
• Compact, Serviceable Design: Space-efficient footprint with accessible components simplifies installation, reduces maintenance time, and supports use in space-constrained production areas.

System Specifications

• Model: Micron+ Drum 20
• Drum Capacity: 5 Gallon Pail (20 Liter)
• Compatible Materials: PSA (Pressure Sensitive Adhesives), EVA, and Polyolefin (PO) Hot Melt Adhesives
• Melting Plate: Smooth and Radial Fins
• Melting Rate: Up to 39.7 to 44.1 lbs/hr (18-20 kg/hr)
• Number of Pumps: 1 Single Pump or 1 Double Pump
• Pumping Capacity:
• Single Pump: 1, 2.5, 4, 8 cc/rev
• Double Pump: 2 x 0.93, 2 x 1.86, 2 x 3.71, 2 x 4.8 cc/rev
• Number of Hydraulic Outputs: 2 per Pump (3/4" UNF Thread)
• Number of Electrical Outputs: Up to 10 Outputs
• Motor Power: 0.250 kW
• Pump Speed: 10-80 rpm (Range 0 - 100 rpm)
• Temperature Range: 104ºF to 392ºF (40ºC to 200ºC)
• Temperature Control: RTD ± 0.9ºF (0.5ºC)
• Max. Pressure: 1,160 psi (80 bar) - Do not exceed 1,015 psi (70 bar)
• Bypass Valve: Mechanical or Pneumatic
• Maximum Power Supply:
• 1 Single Pump / 2 Outputs: 5,000 W per phase
• 1 Double Pump / 4 Outputs: 5,000 W per phase
• Electrical Requirements:
• 3N ~ 400V 50/60 Hz + PE
• 3 ~ 480V 50/60 Hz + PE

Available Configurations & Options

The Micron+ Drum 20 Melter can be configured to match specific adhesive types, flow requirements, and application setups.

• Melting Plate Options: Smooth or radial fin plates to optimize melt rate based on adhesive characteristics
• Pump Configurations: Single or double pump setups with multiple displacement options to match required output
• Bypass Valve Options: Mechanical or pneumatic bypass valve for pressure regulation and system protection
• Heated Hose & Applicator Integration: Compatible with multiple hose and dispensing gun configurations
• Control & Output Configuration: Up to 10 electrical outputs for system integration and expansion

Common Applications for 5 Gallon Hot Melt Pail Unloaders

• Automotive Manufacturing
• Construction and Building Materials
• Woodworking and Furniture Assembly
• Textile and Nonwoven Production
• Mattress Manufacturing
• General Product Assembly
• Graphic Arts and Bookbinding
