Graco PC-8e InvisiPac Pattern Controller – Encoder-Capable Control with Line Speed Compensation

Precision Encoder-Capable Adhesive Pattern Control for InvisiPac Systems

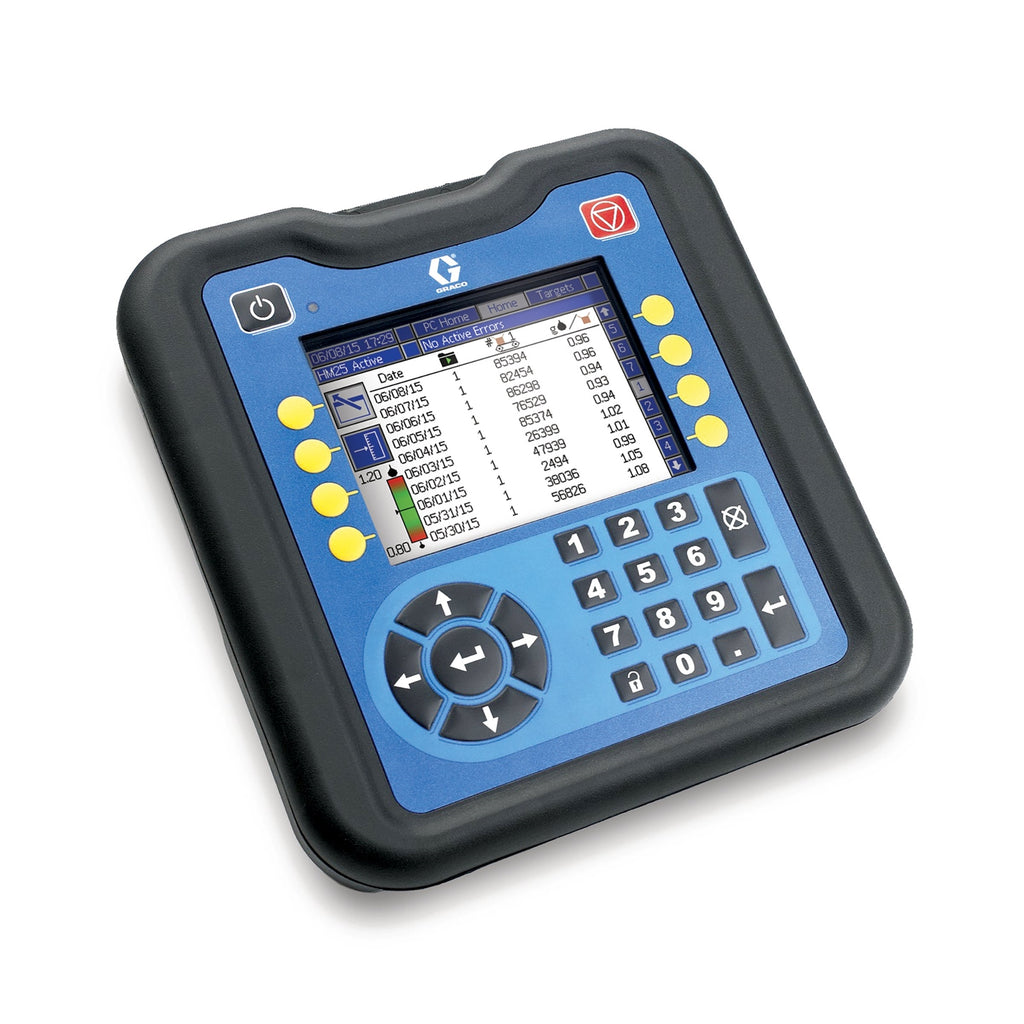

The Graco InvisiPac PC8e Integrated Pattern Controller delivers high-precision adhesive pattern control for InvisiPac hot melt systems and other compatible equipment requiring advanced pattern control. It supports time-based operation as well as distance-based control with optional encoder input and variable line speed compensation. Programmed through Graco’s Advanced Display Module (ADM), the PC-8e allows operators to easily create, monitor, and adjust adhesive patterns while maintaining consistent application accuracy, even as production speeds change.

When used with an encoder, the PC-8e synchronizes adhesive output with line speed to help optimize adhesive usage and improve bond consistency in demanding, variable-speed applications. In addition to time- and distance-based pattern control, the PC-8e supports advanced run-up control using I/P or V/P pressure regulation, making it well suited for precision packaging and industrial processes where accuracy and repeatability are critical.

For applications that do not require encoder feedback or line speed compensation, the InvisiPac PC-8 pattern controller is also available.

Key Benefits of InvisiPac PC-8e Advanced Pattern Control

• Encoder-Capable Distance Control: Supports encoder feedback to deliver highly accurate, repeatable adhesive patterns based on actual product movement when distance-based control is required.

• Variable Line Speed Compensation: Automatically adjusts adhesive output as line speeds change when used with an encoder, maintaining consistent bead placement and coverage across varying production conditions.

• Advanced Run-Up Control: Uses I/P (current-to-pressure) or V/P (voltage-to-pressure) regulation to control adhesive pressure during startup and speed changes, helping maintain consistent flow and bond quality.

• Time- and Distance-Based Pattern Programming: Allows operators to select the most appropriate control method for the application, with the flexibility to add encoder-based control as needed.

• Intuitive ADM Programming and Monitoring: Features Graco’s Advanced Display Module (ADM) for easy setup, pattern visualization, and real-time adjustments in demanding production environments.

Specifications

• Model: InvisiPac PC-8e

• Type: Hot Melt Pattern Controller

• Gun Outputs: 8

• Trigger Inputs: 4

• Encoder Support: Yes (optional)

• Line Speed Compensation: Yes (when encoder is used)

• PLC Enable / Disable: Yes

• PLC Program Select Bits: 4

• PLC Alarm Output: Yes

• Integrated Power Supply: Yes

• Program Storage Capacity: 50 programs

• Beads per Output: Up to 24

• Distance Accuracy: 1 mm (0.1 in)

• Time Accuracy: 1 ms

• Enclosure Environmental Rating: IP54

• Approvals: CE, ETL, cETL
